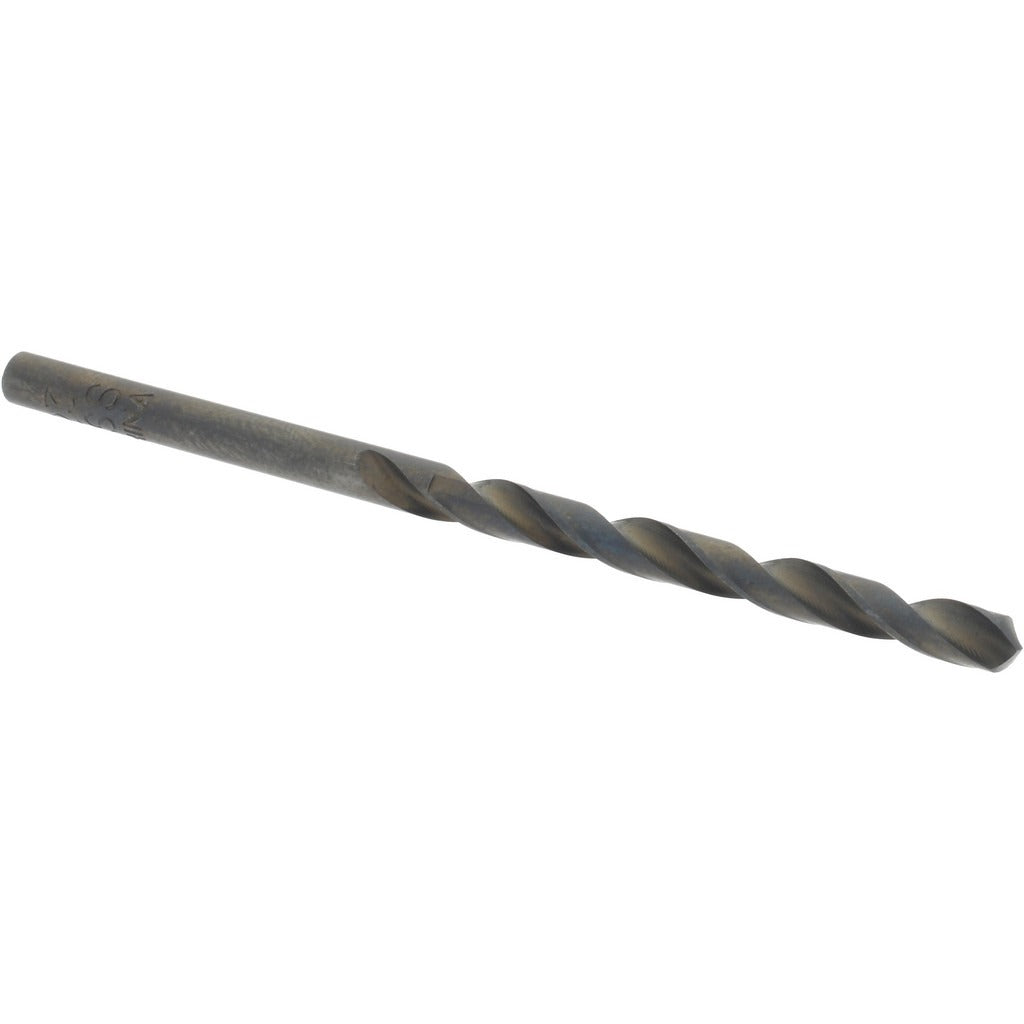

Value Collection 01188234 No. 23 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188234 is a No. 23 wire-size jobber-length drill bit manufactured from high speed steel (HSS) with an oxide coating. It measures 0.154 inches in diameter and carries a 118-degree standard point angle, making it a general-purpose option for drilling into steel and cast iron. The overall length is 3.125 inches, with a 2-inch flute length. The web is thinned with a tapered web configuration, which reduces the thrust required to start a hole and improves chip evacuation. This bit is commonly stocked by machinists, millwrights, and maintenance technicians who work with ferrous metals.

This jobber drill bit is suited for general-purpose metalworking in job shop, production, and maintenance-repair-overhaul environments. The straight cylindrical shank accepts standard three-jaw drill chucks on benchtop drill presses, hand drills, and CNC drilling setups. Primary workpiece materials include steel and cast iron. The regular spiral flute and right-hand cutting direction are standard configurations for the majority of production and field drilling applications.

Key Features

• No. 23 wire size — 0.154 inch diameter for precision hole sizing
• 118-degree standard point angle for general-purpose drilling in ferrous metals
• High speed steel construction with oxide finish for corrosion resistance and reduced friction
• Web-thinned tapered web reduces entry thrust and improves chip flow
• Right-hand cut, regular spiral flute — compatible with standard drill chucks
• Straight cylindrical shank fits most benchtop and handheld drilling equipment

Compatibility

Designed as a general-purpose jobber drill bit for use in standard three-jaw drill chucks across benchtop drill presses, handheld power drills, and CNC drilling equipment accepting a 0.154-inch straight shank.

Installation Notes

Installation and use should be performed by machinists, maintenance technicians, or qualified tradespeople familiar with drilling operations. Secure the workpiece firmly before drilling and confirm the chuck is tightened to the appropriate setting. Use cutting fluid or coolant when drilling steel or cast iron to extend bit life and manage heat buildup. Inspect the cutting edges for wear before each use and replace when the point shows signs of dulling or chipping.
