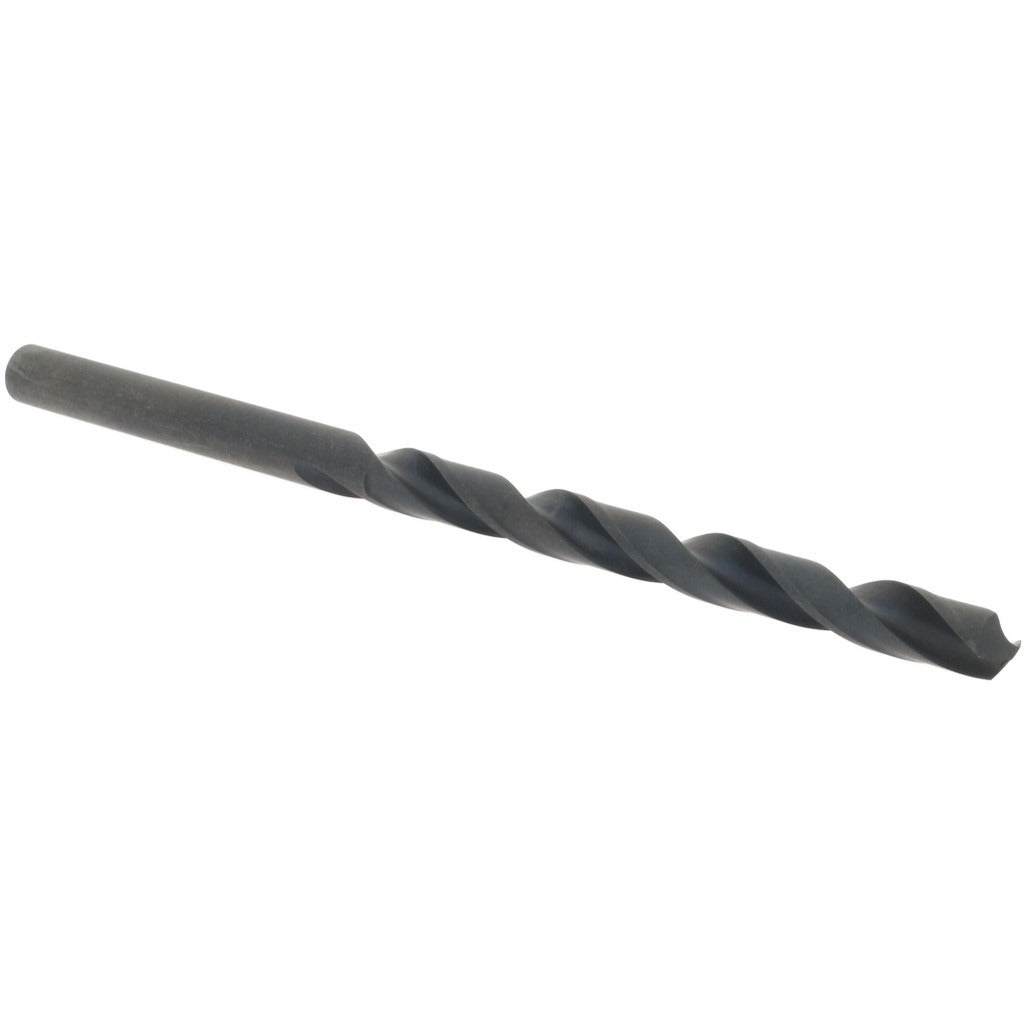

Value Collection 01188150 Jobber Drill Bit No 15 Hss

Product Description

The VALUE COLLECTION 01188150 is a wire-gauge jobber-length drill bit sized at No. 15 (0.1800 inches decimal) and ground to a 118-degree standard point angle. The body is machined from high speed steel (HSS) with an oxide finish that provides light corrosion resistance and reduces friction during cutting. At 3.375 inches overall length with a 2.1875-inch flute length, this bit fits standard drill chucks via its straight cylindrical shank. The right-hand, regular spiral flute geometry evacuates chips efficiently in general-purpose drilling operations. It is suited for use by machinists, maintenance technicians, electricians, and pipefitters who drill through steel and cast iron in everyday production or service work.

This jobber drill bit is intended for general-purpose drilling in steel and cast iron in both shop and field environments. The web-thinned, tapered-web construction reduces the thrust required to start a hole, making it practical for hand-held drill use as well as drill-press work. The 0.1800-inch shank diameter matches the bit diameter, fitting directly into standard keyed or keyless chucks without a reduction sleeve. Typical applications include tapping-size hole preparation, clearance holes, and through-hole drilling in light structural and mechanical assemblies.

Key Features

• No. 15 wire size — 0.1800 inch diameter — for precise tap and clearance hole sizing
• 118-degree standard point angle for general-purpose drilling in ferrous metals
• High speed steel construction rated for steel and cast iron workpiece materials
• Oxide coating provides light surface protection and reduces built-up edge
• Web-thinned, tapered web reduces drill entry thrust
• Right-hand, regular spiral flute promotes consistent chip evacuation

Compatibility

Designed as a general-purpose replacement or stock drill bit compatible with any standard 3-jaw keyed or keyless drill chuck accepting a 0.1800-inch straight shank, used in drill presses, hand drills, and machine tool turrets across industrial and trade applications.

Installation Notes

Secure the shank fully in the drill chuck before operation and verify concentricity to minimize runout. Always wear appropriate eye protection and secure the workpiece before drilling. Disconnect or de-energize the drill press or power tool before changing bits. Use cutting fluid when drilling steel to extend bit life and improve hole finish.
