Value Collection 01167758 No 75 Hss Jobber Drill Bit

Product Description

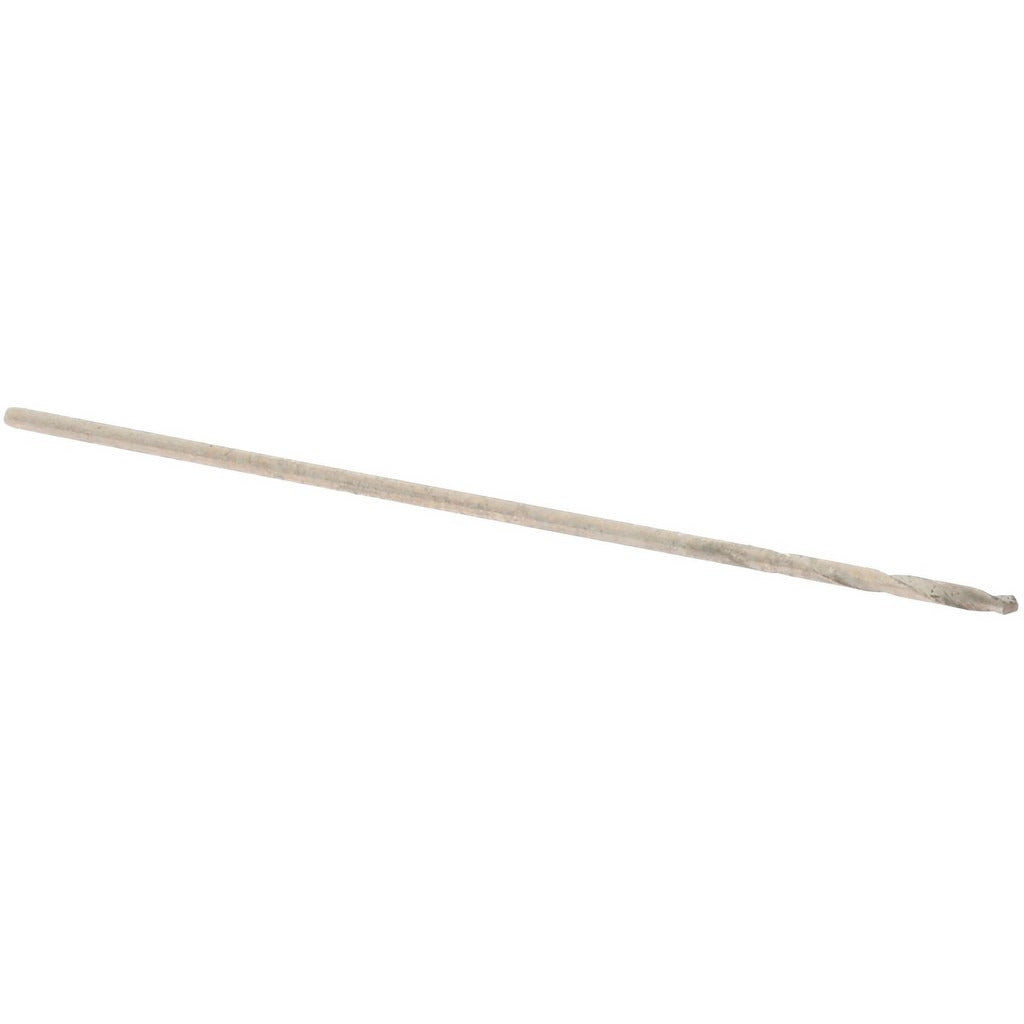

The VALUE COLLECTION 01167758 is a No. 75 wire-size jobber-length drill bit designed for precision drilling in tight-tolerance applications. Manufactured from high speed steel (HSS) with a bright/uncoated finish, it features a standard 118-degree point angle and a regular spiral flute for efficient chip evacuation. The straight cylindrical shank measures 0.0210 inches in diameter, and the overall length is 1 inch with a flute length of 0.25 inches. This bit is suited for machinists, maintenance technicians, and metalworkers who require small-diameter drilling performance in production or repair environments.

This drill bit is rated for use in aluminum and non-ferrous materials, making it appropriate for sheet metal fabrication, light manufacturing, and precision assembly work. The web-thinned, tapered web configuration reduces cutting resistance at entry, which is particularly useful when drilling small-diameter holes where thrust force control matters. Its compact 1-inch overall length makes it well suited for use in tight spaces or with pin vises and precision drill presses.

Key Features

• No. 75 wire size with 0.0210-inch decimal diameter for fine, precise hole work
• 118-degree standard point angle for general-purpose drilling in non-ferrous metals
• High speed steel construction provides adequate hardness and wear resistance for production use
• Web-thinned tapered web reduces entry thrust and improves centering
• Bright/uncoated finish allows easy visual inspection for wear or damage
• Right-hand cutting direction compatible with standard drill press and hand-drill chuck rotation

Compatibility

Designed as a general-purpose jobber drill bit for use in aluminum and non-ferrous workpiece materials. Fits standard straight-shank chucks and pin vises accepting a 0.0210-inch shank diameter.

Installation Notes

Installation and use of small-diameter drill bits should be performed by machinists or trained technicians familiar with precision drilling procedures. Secure the workpiece firmly before drilling to prevent walking or bit deflection at this diameter. Use a center punch or spot drill to establish a starting point and minimize lateral load on the bit. Inspect the cutting edges before each use, as HSS bits at this size are susceptible to breakage if run at incorrect speeds or feeds.
