Value Collection 01167360 No.36 Hss Jobber Drill Bit

Product Description

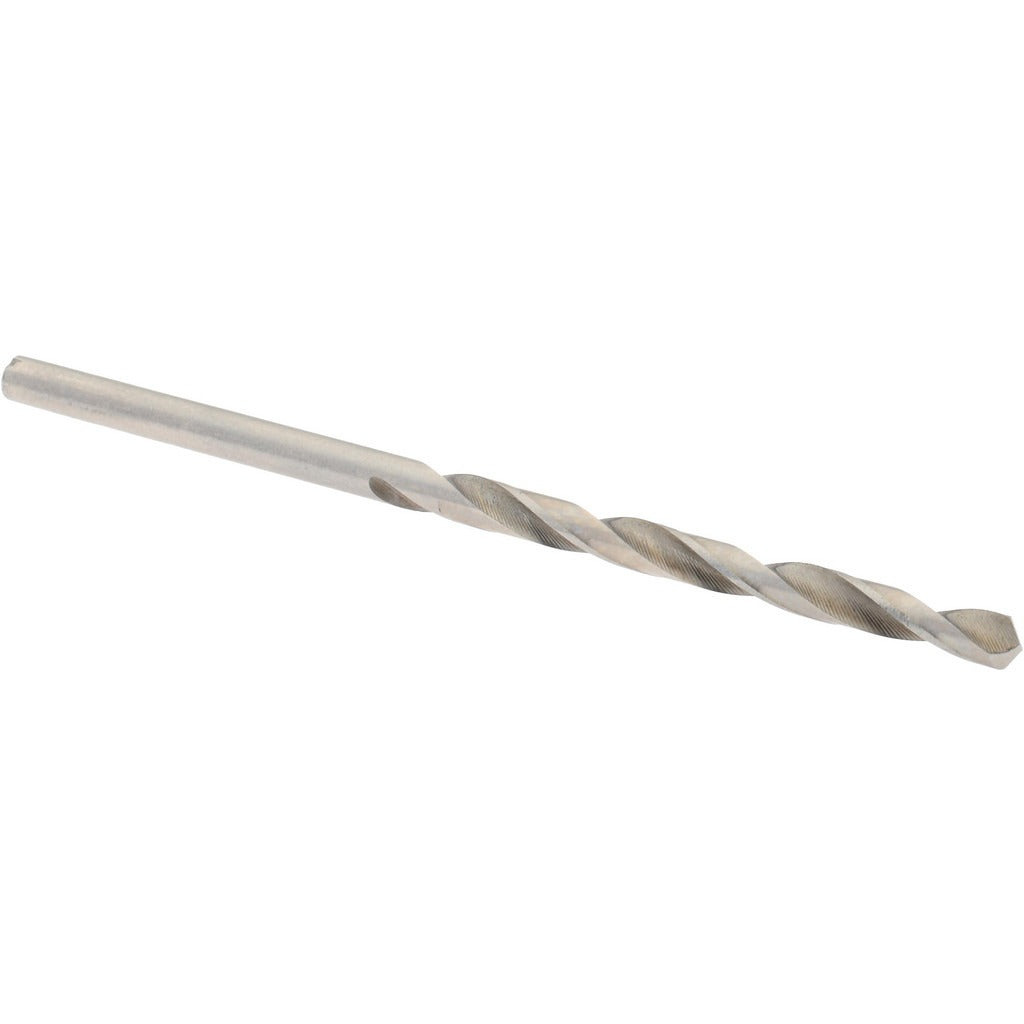

The VALUE COLLECTION 01167360 is a No. 36 wire-gauge jobber-length drill bit manufactured from high speed steel (HSS) with a bright, uncoated finish. It features a 118-degree standard point angle suited for general-purpose drilling and a right-hand, regular spiral flute geometry that evacuates chips efficiently during operation. The decimal diameter is 0.1065 inches, the flute length is 1.4375 inches, and the overall length is 2.5 inches. The straight cylindrical shank seats directly in standard drill chucks. This bit is a general-purpose hand-tool or machine-tool accessory installed by machinists, maintenance technicians, and trade professionals working with aluminum and non-ferrous materials.

This jobber drill bit is intended for use on aluminum, brass, copper, and other non-ferrous workpieces in light manufacturing, maintenance, and repair applications. The web-thinned, tapered web configuration reduces thrust required to start the hole and helps maintain point centering without a pilot hole in many common applications. At 2.5 inches overall length, it fits standard drill presses, cordless drills, and CNC drill heads that accept straight-shank tooling.

Key Features

• Wire gauge No. 36 diameter: 0.1065 inches for precision small-diameter hole work
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• High speed steel construction provides hardness and wear resistance on non-ferrous materials
• Bright, uncoated finish suitable for general-purpose use without coolant-through requirement
• Right-hand regular spiral flute promotes clean chip evacuation in shallow to moderate depth holes
• Straight cylindrical shank at 0.1065 inches diameter fits standard three-jaw drill chucks

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with any drill press, hand drill, or CNC spindle that accepts a straight-shank tool with a 0.1065-inch shank diameter. Primary workpiece material compatibility is aluminum and non-ferrous metals per manufacturer specification.

Installation Notes

Secure the shank fully in the drill chuck and verify the bit runs true before engaging the workpiece. Always wear appropriate eye protection when operating rotary cutting tools. Disconnect power or remove the battery from the drill before changing bits. Follow applicable shop safety standards and machine-tool operating procedures when setting spindle speed and feed rate for the workpiece material.
