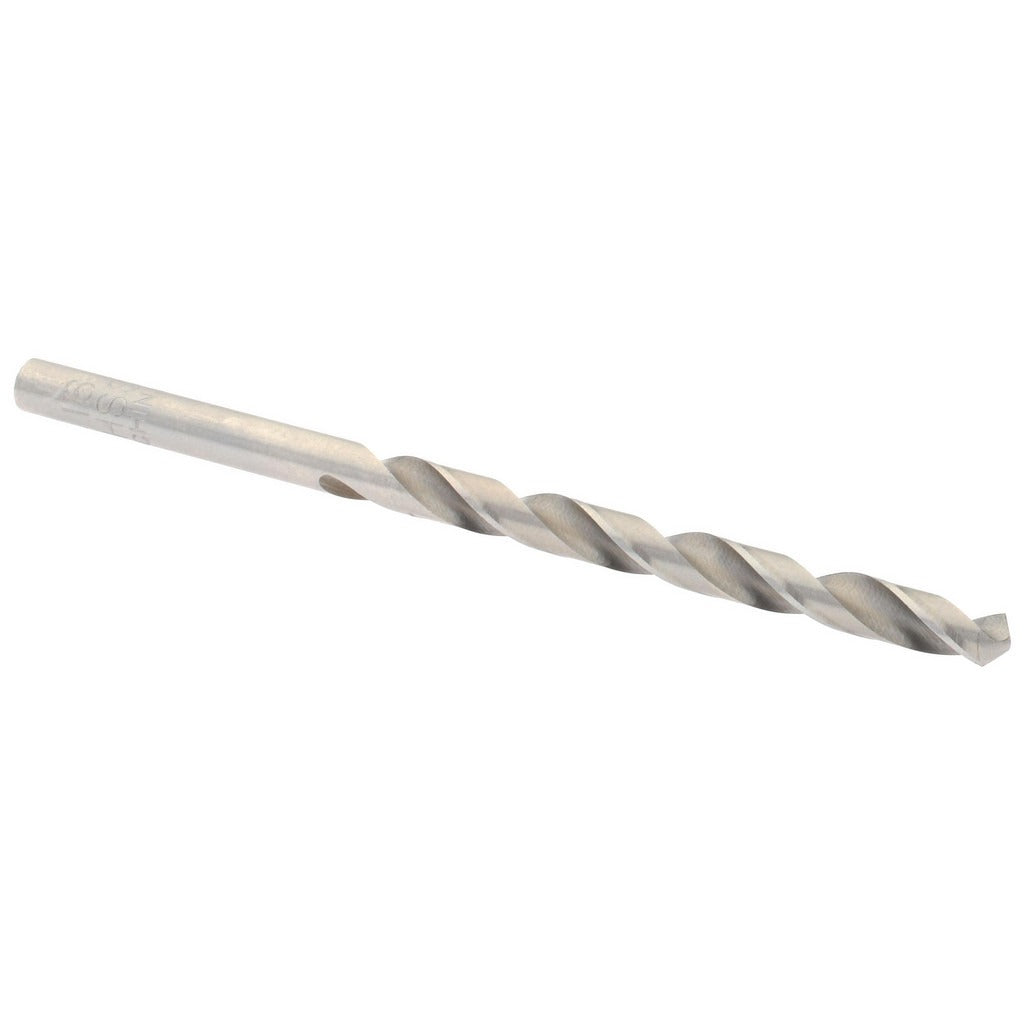

Value Collection 01167162 No 16 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01167162 is a No. 16 wire-size jobber-length drill bit manufactured from high speed steel (HSS) with a bright, uncoated finish. It measures 3.375 inches in overall length with a 2.1875-inch flute length and a 0.1770-inch diameter. The 118-degree standard point angle and right-hand spiral flute geometry suit general-purpose drilling in production, maintenance, and fabrication environments. The straight cylindrical shank is compatible with standard drill chucks. Web thinning reduces thrust and improves chip clearance at the cutting edge. This bit is suited for use by machinists, maintenance technicians, and trade professionals who require a reliable, general-purpose drill in wire-gauge sizes.

The 01167162 is rated for drilling aluminum and other non-ferrous materials as its primary workpiece application. The regular spiral flute design supports efficient chip evacuation in these softer materials, helping maintain hole quality and reducing heat buildup. The general-purpose grade designation makes this bit appropriate for job-site drilling, light production runs, and bench work where a standard HSS bit without specialized coating is acceptable. Coolant-through capability is not available on this bit.

Key Features

• No. 16 wire size, 0.1770-inch decimal diameter
• 118-degree standard point angle for general-purpose drilling
• High speed steel construction, bright uncoated finish
• Right-hand cutting direction with regular spiral flute
• Web-thinned, tapered web configuration for reduced thrust
• 3.375-inch overall length, 2.1875-inch flute length

Compatibility

Designed as a general-purpose jobber-length drill bit for use in standard drill chucks accepting a 0.1770-inch straight cylindrical shank. Primarily suited for aluminum and non-ferrous workpiece materials.

Installation Notes

Install this bit in a drill press, hand drill, or lathe tailstock chuck rated for the shank diameter before beginning any drilling operation. Ensure the workpiece is securely clamped and the machine is powered off during bit changes. Apply appropriate cutting fluid or lubricant when drilling non-ferrous metals to extend bit life and maintain hole tolerance. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point is visibly damaged.
