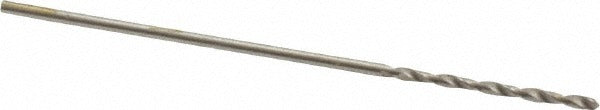

Value Collection 01165026 1/32 in Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01165026 is a high speed steel jobber-length drill bit sized at 1/32 inch (0.0312 inch decimal). It features a standard 118-degree point angle and a bright, uncoated finish suited for general-purpose drilling applications. The two-flute right-hand spiral design promotes efficient chip evacuation in a compact package with an overall length of 1.375 inches and a flute length of 0.5 inches. The web-thinned, tapered web configuration reduces thrust requirements at entry. This bit is installed by machinists, maintenance technicians, electricians, and general tradespeople working with small-diameter holes in light-duty materials.

This jobber drill bit is rated for use in aluminum and non-ferrous workpiece materials. Its straight cylindrical shank with a 0.0313-inch shank diameter seats directly into standard drill chucks without adapters. The compact 1.375-inch overall length makes it appropriate for benchtop drill presses, handheld power drills, and CNC drilling setups requiring small-diameter entry holes. It carries a general-purpose grade designation, making it a practical stock item for shops and service trucks handling a range of light-material drilling tasks.

Key Features

• 1/32 inch (0.0312 inch) drill diameter for fine, small-diameter holes
• 118-degree standard point angle for general-purpose material entry
• High speed steel construction provides durability in non-ferrous and aluminum drilling
• Bright uncoated finish — no coating buildup to affect tight-tolerance hole sizing
• Web-thinned tapered web reduces cutting thrust on entry
• Right-hand two-flute spiral flute for standard chuck compatibility and chip clearance

Compatibility

Designed as a general-purpose jobber drill bit for use in standard drill chucks accepting a straight cylindrical shank. Primary workpiece material rating is aluminum and non-ferrous metals.

Installation Notes

This drill bit is installed by machinists and trade technicians in standard drill chucks or collets. Secure the straight shank fully in the chuck before operating and confirm the drill press or driver is powered down before bit changes. Use appropriate cutting fluid or lubrication when drilling non-ferrous metals to extend bit life. Do not exceed the rated workpiece material type, as use in hardened steel or ferrous materials is outside the general-purpose grade specification for this bit.
