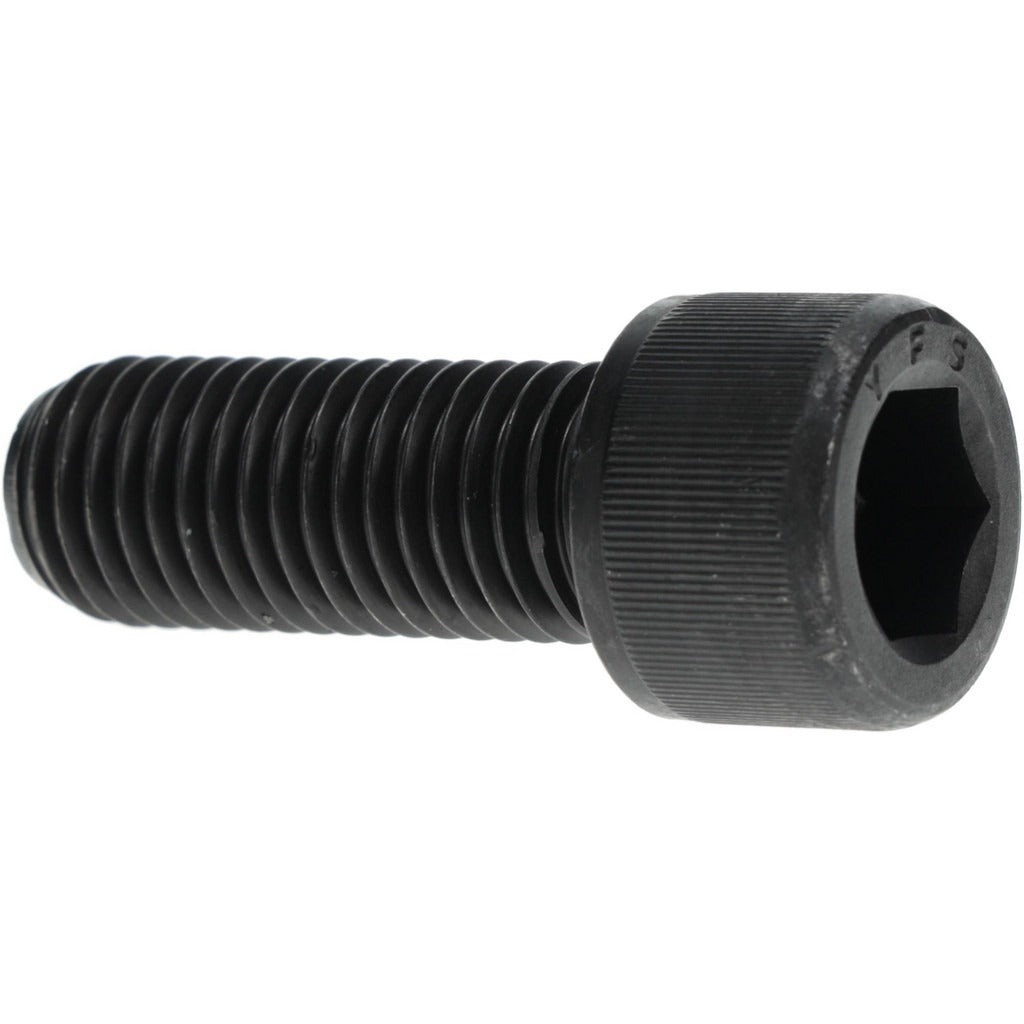

Value Collection 011465BR Hex Socket Cap Screw 3/4-10 Unc

Product Description

The VALUE COLLECTION 011465BR is a hex socket cap screw designed for high-strength fastening applications across industrial, mechanical, and structural assemblies. Manufactured from alloy steel with a black oxide finish, this fastener delivers strong clamping force and moderate corrosion resistance in controlled environments. The screw features a 3/4-10 UNC thread size, a 2-inch length under head, and is fully threaded throughout its shank. A 5/8-inch hex drive socket is required for installation. It conforms to ASME/ANSI B18.3 and ASTM A574 standards, making it a reliable choice where specification compliance is required.

This fastener is suited for general industrial maintenance, machinery assembly, and fabrication work where a recessed-drive, high-strength cap screw is specified. The fully threaded configuration provides maximum thread engagement across the full clamping length, making it appropriate for through-bolt applications or use with threaded inserts. Typical users include machinists, millwrights, maintenance technicians, and fabricators working on equipment frames, fixtures, brackets, and structural steel connections.

Key Features

• 3/4-10 UNC thread for strong engagement in standard coarse-thread tapped holes
• Fully threaded shank maximizes thread contact across the full 2-inch clamping length
• Alloy steel construction meets ASTM A574 high-strength requirements
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• 5/8-inch internal hex drive accepts standard socket and Allen key tooling
• Conforms to ASME/ANSI B18.3 dimensional standards

Compatibility

Designed as a standard replacement or specification-compliant fastener for any application calling for a 3/4-10 UNC fully threaded hex socket cap screw per ASME/ANSI B18.3 and ASTM A574.

Installation Notes

Installation requires a 5/8-inch hex key or socket drive tool rated for the fastener size. Ensure the mating tapped hole or nut meets 3/4-10 UNC thread specifications before installation. Apply thread lubricant or anti-seize compound as appropriate for the application environment. Always follow applicable mechanical and structural codes for fastener torque and preload requirements when installing high-strength cap screws in load-bearing assemblies.
