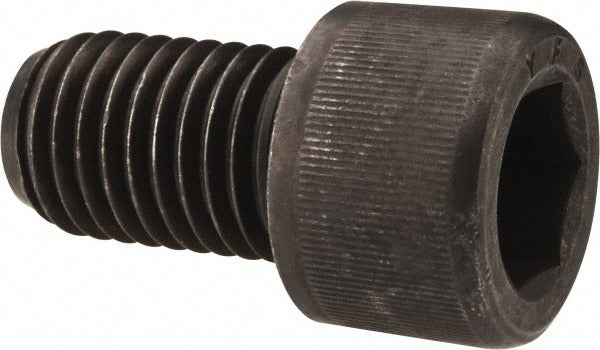

Value Collection 011459BR Hex Socket Cap Screw 3/4-10 Unc

Product Description

The VALUE COLLECTION 011459BR is a hex socket cap screw designed for high-strength fastening applications in mechanical assemblies, fixtures, and structural connections. Machined from alloy steel with a black oxide finish, this fastener meets ASME/ANSI B18.3 and ASTM A574 standards for dimensional accuracy and tensile strength. The screw features a 3/4-10 UNC thread size, a 1-1/4 inch length under head, and is fully threaded from tip to head. Drive engagement is via a 5/8 inch hex socket. It is well suited for machine shops, maintenance crews, and industrial assembly operations requiring a reliable, code-compliant socket head cap screw.

This fastener fits standard 3/4-10 UNC tapped holes in ferrous and non-ferrous assemblies. Common applications include equipment mounting, jig and fixture construction, die sets, and general industrial fastening where a recessed socket drive and high clamping load are required. The black oxide coating provides a degree of corrosion resistance suitable for indoor and controlled-environment use. This screw is sold individually but must be ordered in multiples of 10.

Key Features

• 3/4-10 UNC thread form for compatibility with standard unified coarse tapped holes
• Fully threaded along the entire 1-1/4 inch length under head
• Alloy steel construction meets ASTM A574 mechanical requirements
• Black oxide finish provides mild corrosion resistance and low light reflectivity
• 5/8 inch hex socket drive for use with standard Allen keys and socket drivers
• Conforms to ASME/ANSI B18.3 dimensional standards

Compatibility

Designed for use in any application requiring a 3/4-10 UNC fully threaded hex socket cap screw conforming to ASME/ANSI B18.3 and ASTM A574 specifications.

Installation Notes

Installation is performed with a 5/8 inch hex key or socket driver. Ensure the receiving tapped hole is clean, free of debris, and cut to the correct UNC thread specification before driving. Apply thread lubricant or anti-seize as required by the assembly specification. De-energize or lock out any powered equipment before servicing fastened assemblies in accordance with applicable OSHA lockout/tagout procedures.
