Product Description

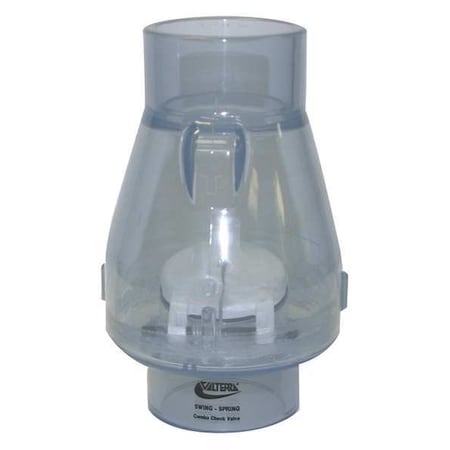

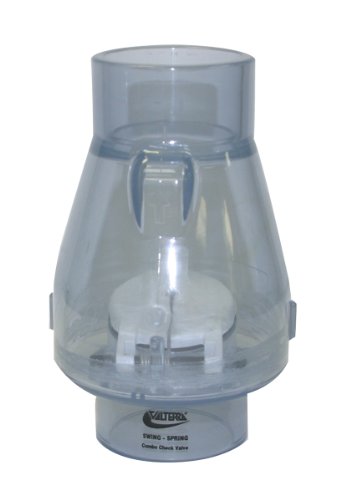

The Valterra 200-C20 Check Valve is designed for reliable fluid control. Constructed from clear schedule 40 PVC, this valve offers strength and resistance to corrosion. It features a swing and spring mechanism, allowing for installation in any orientation. With two slip connections at each end, it requires glue for secure fastening. The valve has a maximum pressure rating of one hundred fifty pounds per square inch and a spring tension of one half pound.
- Constructed of schedule 40 PVC
- EPDM seal resists water and oils
- Two slip connections for easy installation
Product Highlights
This check valve is suitable for various applications, including landscape and irrigation systems, pools and spas, aquaculture, and general use. Check valves ensure that fluid flows in one direction, preventing backflow which could damage systems.
Product Information
Standard Information
-
Manufacturer: Valterra Products
-
Model Number: 200-C20
Technical Specifications
-
Connection Type: Slip x Slip
-
Maximum Pressure: 150 psi
-
Spring Tension: 1/2 lb
-
Dimensions: 4.5 inches x 4.5 inches
-
Temperature Range: 35 to 73 Degrees F
-
Flow Rate: 18 gpm
-
Body Material: PVC
-
Seal Material: EPDM
