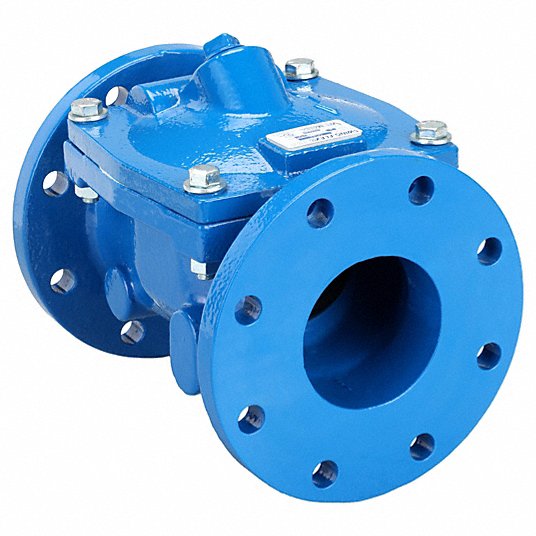

Valmatic 504A-DB6F Swing Flex Check Valve 4 inches Flanged

Brand: VALMATIC
SKU: 504A-DB6F
Availability: Out Of Stock
$859.02
$859.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The VALMATIC 504A-DB6F is a 4" swing flex check valve with a flanged connection. Designed with a single flow, this valve features an inline swing flex mechanism and body. It is constructed from cast iron and is suitable for horizontal or vertical mounting. It has a cracking pressure of 0.25 psi.

  • Pipe Size 4"
  • Connection Type Flanged x Flanged
  • Connection Flanged

Product Highlights

The VALMATIC 504A-DB6F swing flex check valve is ideal for general purpose applications.

Product Information

Standard Information

  • Brand: VALMATIC
  • Manufacturer Part Number: 504A-DB6F
  • Country of Origin: United States
Technical Specifications
MFR #
504A-DB6F
Pipe Size
4"
Size
4"
Pipe or Tube Size - Check Valves
4 in
Length
11-1/2"
Overall Length
11.5 in
Pipe or Tube Size
4 in
Connection Size - Side 1
4 in
Connection Size - Side 2
4 in
Nominal Valve Size
4 in
Connection Type
Flanged x Flanged
Connection
Flanged
Body Material
Ductile Iron ASTM A536
Seal Material - Check Valves
Metal
Flow Design
Single
Max. Temp.
-70 Degrees to 215 Degrees F
Max. Water Pressure - Valves
250 psi
Min. Temp. - Valves
33 Degrees F
Material of Construction
Cast Iron ASTM A 126
Max. Pressure
250 psig
Connection Type - Check Valves
Flange x Flange
Item
Swing Flex Check Valve
Application - Valves
General Purpose
Flow - Valves
500 gpm
Item - Check Valves
Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Seat Material - Check Valves
Buna-N
Max. Temp. - Valves
200 Degrees F
Body Material - Valves
Cast Iron
Mounting Position
Horizontal
Cracking Pressure - Check Valves
0.250 psi
Standards
ANSI 372
Sub-Category
Iron
Mechanism and Body Design
Inline Swing Flex
Seat Material
Buna N
Max. Water Pressure
250 psi
Cracking Pressure
0.25 psi
Max. Steam Pressure - Valves
Not Rated
Flow
440 gpm
Full Flow - Valves
No
Seal Material
Buna-N
Temp. Range
-32 to 210 Degrees F
Mounting Orientation
Horizontal, Vertical
Type
Swing Flex
ANSI Flange Class
Class 125
Maximum Pressure - Operating
250 psi
NSF Certifications for Food and Drinking Water
NSF 61
Silent Check
Standard
Vacuum Service Rating
Not Rated
Valve Body Style
Inline
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
33 Degrees F
Operating Temperature - Maximum
200 Degrees F
Connection Type - Side 2
Flange
For Media
Drinking Water
Check Mechanism
Swing
Check Mechanism Material
Steel
3-A Standard Compliance
Not Rated
Connection Type - Side 1
Flange
Valve Series
500A
Brand
Val-Matic
Check Valve Type
Swing
Diameter
4 in
MPN
504A-DB6F
Pressure Rating
250 PSI
Flow Capacity
500 GPM
Media Temp. Range
33 F to 200 F
Disc Material
Steel
3-A Compliance
Not Rated
UNSPSC
40141634
