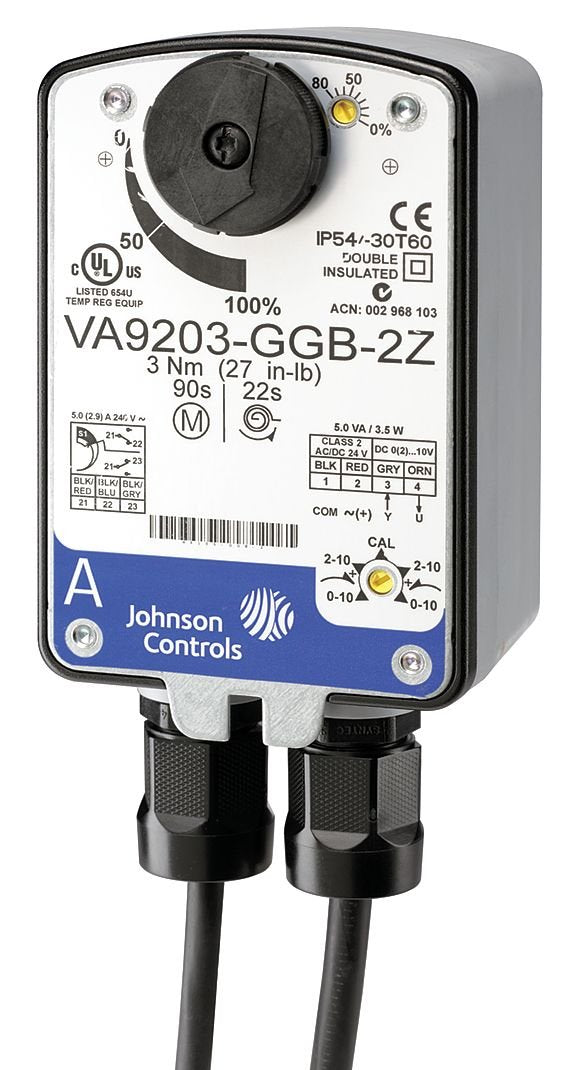

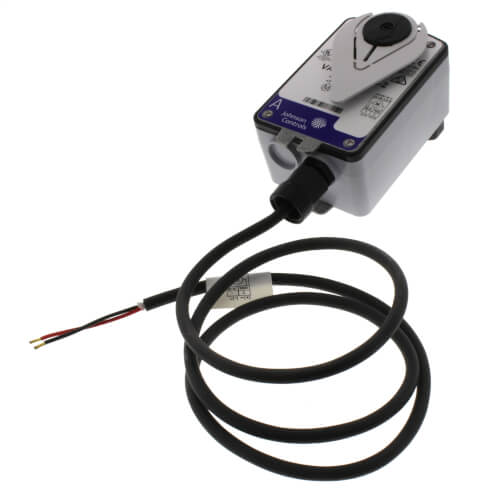

Johnson Controls VA9203-BGB-2 Electric Spring-Return Ball Valve Actuator 24V

Product Description

The Johnson Controls VA9203-BGB-2 is a high-performance electric spring-return ball valve actuator designed for reliable operation in HVAC systems. It is compatible with Johnson Controls VG1000 Series ball valves and is used extensively in heating, ventilating, and air conditioning applications.

• Direct coupling with VG1000 Series ball valves ensures seamless operation.
• Equipped with a mechanical spring-return system to provide reliable functionality with or without power.
• Features an accessory crank arm and remote mounting options for versatile installation.

Product Highlights

This actuator operates on both AC and DC 24V power and provides precise valve positioning with its robust mechanical spring-return setup. An optional line voltage auxiliary switch is available to indicate end-stop positions or to perform switching functions within a specified rotation range.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VA9203-BGB-2

Technical Specifications

• Power Input: AC/DC 24V
• Torque Capacity: 27 lb-in
• Control Type: SPDT Auxiliary Switch
• Dimensions: 11.6 x 6.3 x 4 inches
• Weight: 2.94 pounds
