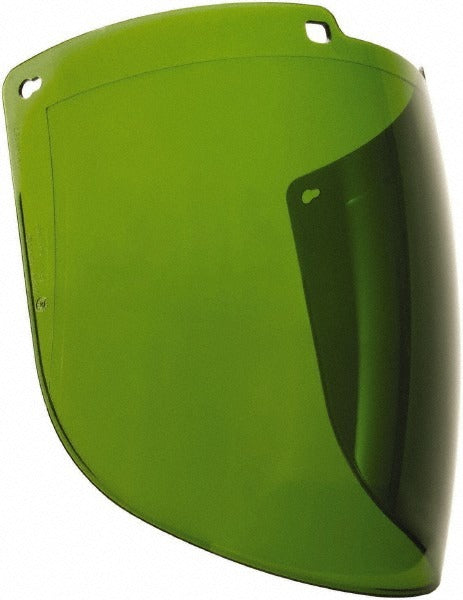

Uvex S9560 Welding Lens Shade 3 Green Uvex Turboshield

Product Description

The UVEX S9560 is a shade 3 welding lens designed as a replacement window for the Uvex Turboshield face shield system. This green-tinted, uncoated polycarbonate lens filters arc flash and weld spatter glare at shade level 3, making it appropriate for light-duty welding, brazing, and torch cutting tasks. At 9 inches high and 15.875 inches wide with a thickness of 0.086 inches (2.20 mm), the lens provides a wide viewing area while meeting established optical and impact standards. Licensed welders, fabricators, and industrial safety personnel typically install or swap these lenses during routine shield maintenance.

This lens is intended for use with the Uvex Turboshield face shield system in light industrial and fabrication environments. Shade 3 filtration is suited for operations such as light gas welding, torch soldering, and cutting processes where lower arc intensity is present. The lens fits directly into the Turboshield carrier frame without special tooling, making field replacement straightforward during shift changes or after lens damage. It is appropriate for both shop and field service settings where face shield compliance with ANSI Z87.1-2010 and CSA Z94.3 is required.

Key Features

• Shade 3 green tint filters light-duty weld arc and torch glare
• Uncoated polycarbonate lens construction at 0.086 inches (2.20 mm) thickness
• Wide viewing area at 9 inches high by 15.875 inches wide
• Meets ANSI Z87.1-2010 and CSA Z94.3 optical and impact standards
• Direct replacement window for the Uvex Turboshield face shield system

Compatibility

Designed for use with the Uvex Turboshield face shield system as a direct replacement lens window.

Installation Notes

Lens replacement is performed by welders or safety equipment technicians following the Uvex Turboshield frame disassembly procedure. No special tools are typically required, but inspect the carrier frame for cracks or warping before installing a new lens. Ensure the lens seats fully and evenly in the frame retainer to maintain the rated impact protection. Compliance with ANSI Z87.1-2010 requires that only approved replacement lenses be used in certified face shield assemblies.
