Utica kug714133811 Coaxial Vent Pipe UCS380

Product Description

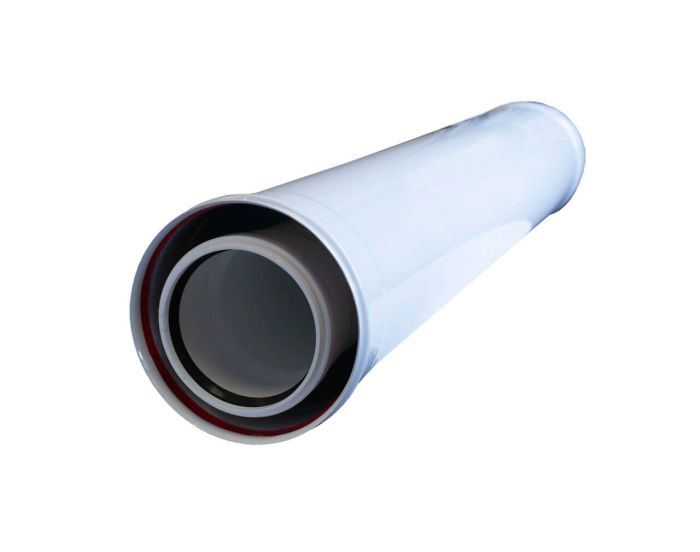

The UTICA kug714133811 is a coaxial vent pipe designed for use with high-efficiency condensing boiler installations. This pipe features a 4-inch inner diameter within a 6-inch outer diameter (110mm/160mm) concentric construction, allowing combustion air supply and flue gas exhaust to run through a single penetration. At 3.28 feet in length, it is sized for direct-vent system connections. Licensed plumbers and HVAC technicians working on condensing boiler systems install this component as part of a sealed combustion vent assembly.

This coaxial vent pipe is intended for residential and light commercial condensing boiler applications where a single-pipe, two-channel venting solution is required. It belongs to the UCS380 series vent system, which is engineered for UTICA Boilers condensing equipment. The concentric design draws outside combustion air through the outer annulus while exhausting flue gases through the inner pipe, eliminating the need for separate intake and exhaust penetrations through the building envelope.

Key Features

• Coaxial (concentric) construction combines air intake and flue exhaust in a single pipe assembly
• 4-inch inner diameter and 6-inch outer diameter (110mm/160mm) sizing matches UCS380 series fittings
• 3.28-foot length suitable for terminal or intermediate run sections
• Designed as a direct-vent component for sealed combustion boiler systems
• Part of the UCS380 venting series for UTICA Boilers condensing equipment

Compatibility

Designed for use with UTICA Boilers condensing equipment in the UCS380 series vent system. Verify vent system series and pipe diameter requirements against the boiler installation manual before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber in accordance with the boiler manufacturer instructions and applicable mechanical codes. Shut down and isolate the boiler from power and fuel before servicing or modifying the vent system. Ensure all coaxial vent joints are fully seated and secured per the UCS380 series assembly instructions to maintain a sealed combustion path. Vent penetrations through walls or roofs must be flashed and sealed to prevent moisture intrusion and comply with local building codes.

Technical Specifications

• Type: Coaxial Vent Pipe
• Series: UCS380
• Size: 4 inches inner diameter / 6 inches outer diameter (110mm/160mm)
• Length: 3.28 feet
• Pack Size: 1 each

Standard Information

• Brand: UTICA
• Manufacturer Part Number: kug714133811
