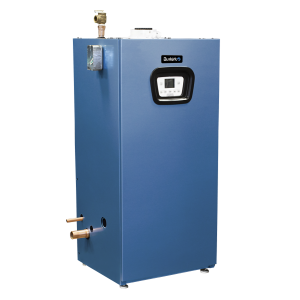

Utica-Dunkirk DCCF-150 DCCF/DCBF High Efficiency Floor-Standing Modulating Condensing Boiler

Product Description

The UTICA-DUNKIRK DCCF-150 is a DCCF/DCBF high-efficiency, floor-standing modulating condensing boiler with AI Control Technology. It automatically sets up during initial startup and recognizes Natural or LP Gas without a conversion kit. The boiler continuously monitors combustion, adjusting gas and airflow to optimize combustion and fuel savings. The user interface displays temperature status symbols and self-diagnostics.

• 95% AFUE efficiency
• ENERGY STAR® Certified
• [AI] Control Technology

Product Highlights

This boiler features auto commissioning, continuous calibration, and a backlit digital display for easy monitoring of boiler status, temperature, and diagnostics.

Product Information

Standard Information

• Brand: UTICA-DUNKIRK
• Manufacturer Part Number: DCCF-150

Technical Specifications

• AFUE: 95%
• ENERGY STAR® Certified: Yes
• Control Technology: [AI] Control Technology
• Turndown Modulation Ratio in DHW Mode (115): 6.9:1
• Turndown Modulation Ratio in DHW Mode (150/205): 7:1
• Turndown Modulation Ratio in Heating Mode (100/115): 5.6:1
• Turndown Modulation Ratio in Heating Mode (125/150): 5.7:1
• Turndown Modulation Ratio in Heating Mode (165/205): 5.5:1
• Flow Rate in DHW Mode @ 70° F rise: 3.5 GPM (DCCF-150)
• Heat Exchanger: Iron Chromium Stainless Steel Heat Exchanger and Burner. DCCF-115/150/205 is also equipped with a Stainless Steel Brazed Plate Heat Exchanger
• Additional Features: Assembled Boiler with Jacket, Induced Draft Fan, High limit sensors, 30psi Relief Valve, Low Water Pressure Switch, Temperature/Pressure Gauge
• Built in load matching Pump: contributes to savings in electrical usage
