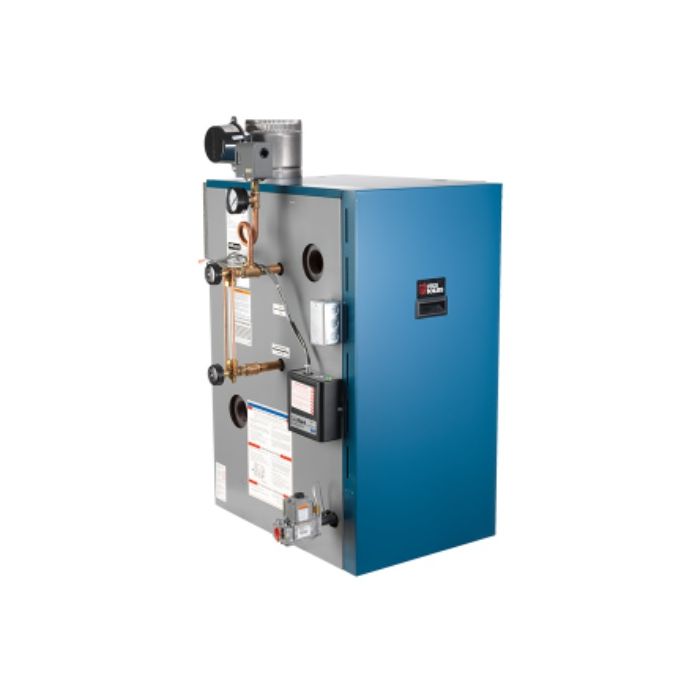

Utica Boilers PEG929903100510 PEG-299-Eid Natural Gas Boiler 299 MBH

Product Description

The Utica Boilers PEG929903100510 PEG-299-Eid is a residential gas-fired steam boiler with electronic ignition. It features a dependable cast iron heat exchanger with cast iron push nipples. The boiler has an AGA input rating of 299 MBH, a DOE heating capacity of 250 MBH, and an AFUE rating of 83.4 percent. Designed for residential applications.

• Features a classic, low profile, compact design.
• Equipped with a redesigned textured painted jacket with a removable one-piece front panel.
• Includes a dependable cast iron heat exchanger with cast iron push nipples.

Product Highlights

This Utica Boiler features a low-profile design, electronic ignition, and a durable cast iron heat exchanger for efficient and reliable steam heat.

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: PEG929903100510
• Country of Origin: USA

Technical Specifications

• AFUE Rating: 83.4 Percent
• AGA Input Rating: 299 MBH
• Applicable Standard: ASME H, AHRI, ANSI, CSA (US)
• Boiler Material: Cast Iron
• Burner Type: Stainless Steel
• Gas Connection: 3/4 Inch Threaded
• Gas Type: Natural/Propane
• Ignition Type: Electronic, Intermittent Pilot Control
• Inclusions Features: Cast Iron Push Nipple, Pressure High Limit Control, Pressure Gauge, Gauge Glass, Gas Valve, Integral Draft Hood, Vent Damper
• Mounting Type: Floor Mount
• Net IBR Rating: 188 MBH
• Pressure Rating: 15 PSI
• Return Connection: 2 Inch Threaded
• Supply Connection: 2 Inch Threaded
• Type: Steam
• Vent Size: 7 Inch
• Venting Type: Atmospheric
• Input Voltage: 120V
• Fuel Type: Natural Gas
• Venting: Chimney Vent
• Electrical Phase: 1-Phase
• Exhaust Pipe: Metal
• Gas Valve: Single Stage
• Load Connection: 2 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 145,001+ BTU
• BTU Input: 299000
• BTU Output: 250000
• Annual Fuel Usage Efficiency (AFUE): 83.4
• Domestic Hot Water: No
• Vent Type: Atmospheric Vent
• Building Type: Residential
• Vent Material: Galvanized B-Vent
• Supply: Female Iron Pipe 2
• Return: Female Iron Pipe 2
• Gas Connection (inches): 3/4
• Square Feet of Steam: 782
• Vent Size (inches): 7
• Net BTU: 188000
• Voltage: 120
• Boiler Sections: 9
