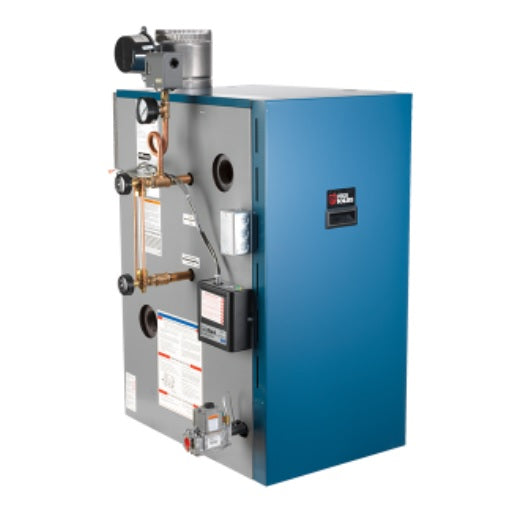

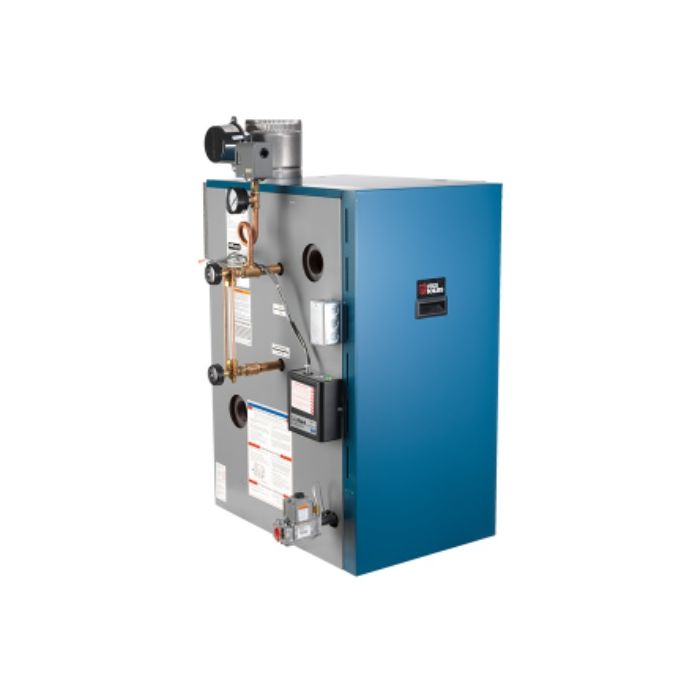

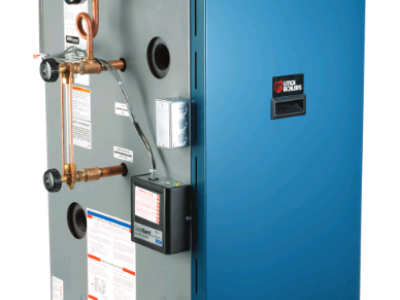

Utica Boilers PEG826203100510 PEG-262-Eid Nat Gas Boiler W/Electronic Ignition

Product Description

The Utica Boilers PEG826203100510 PEG-262-Eid is a residential gas-fired steam boiler with electronic ignition. It features a dependable cast iron heat exchanger with cast iron push nipples for a water-tight seal and greater longevity. The boiler has a low-profile, compact design ideal for low-clearance installations. It can use natural or propane gas.

• Features a redesigned textured painted jacket with an easy-to-remove, one-piece front panel.
• Equipped with a rear-mounted integral draft hood and vent damper.
• Offers easy piping features with 2-inch single and dual piping riser options.

Product Highlights

This Utica Boiler is made in the USA

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: PEG826203100510
• Country of Origin: USA

Technical Specifications

• AFUE Rating: 83.2 Percent
• AGA Input Rating: 262 MBH
• Applicable Standard: ASME H, AHRI, ANSI, CSA (US)
• Boiler Material: Cast Iron
• Burner Type: Stainless Steel
• Gas Connection: 3/4 Inch Threaded
• Gas Type: Natural/Propane
• Ignition Type: Electronic, Intermittent Pilot Control
• Inclusions Features: Cast Iron Push Nipple, Pressure High Limit Control, Pressure Gauge, Gauge Glass, Gas Valve, Integral Draft Hood, Vent Damper
• Mounting Type: Floor Mount
• Net IBR Rating: 164 MBH
• Options: Electronic Water Feeder, Manual Reset Pressure Switch and Low Water Cut-Off, Combustible Floor Plate
• Pressure Rating: 15 PSI
• Return Connection: 2 Inch Threaded
• Supply Connection: 2 Inch Threaded
• Type: Steam
• Vent Size: 7 Inch
• Venting Type: Atmospheric
• Manufacturer Part Number: PEG826203100510
• Manufacturer: Utica
• Series: PEG E
• Item Type: Boiler
• BTU Input: 262000
• Voltage: 120V
• Material: Cast Iron
• Boiler Type: Residential
• Fuel Type: Natural Gas
• Venting: Chimney Vent
• Gas Furnace Efficiency: 83%
• Boiler Sections: 8
• Electrical Phase: 1-Phase
• Exhaust Pipe: Metal
• Gas Valve: Single Stage
• Load Connection: 2 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 145,001+ BTU
• BTU Output: 219000
• Annual Fuel Usage Efficiency (AFUE): 83.2
• Domestic Hot Water: No
• Vent Type: Atmospheric Vent
• Building Type: Residential
• Vent Material: Galvanized, B-Vent
• Supply: Female Iron Pipe 2
• Return: Female Iron Pipe 2
• Gas Connection (inches): 3/4
• Square Feet of Steam: 685
• Vent Size (inches): 7
• Net BTU: 164000
• DOE Heating Capacity: 219 MBtu/hr
• Domestic/Import: Domestic
• Housing Material: Cast Iron
• Ignition: Electronic
• Input Capacity: 262 mbh
