Utica Boilers PEG722503100510 PEG-225-EID Nat Gas Boiler W/Electronic Ignition 225 MBH

Product Description

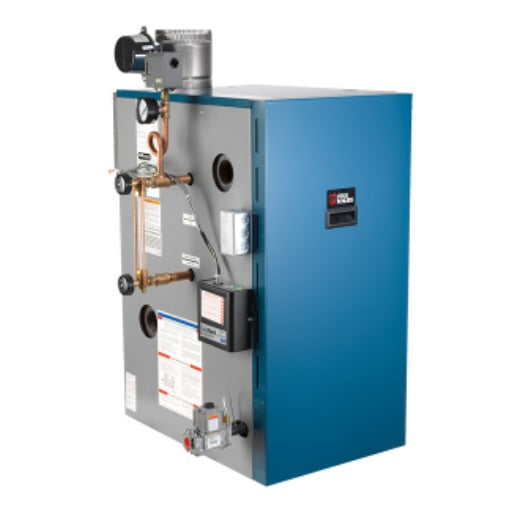

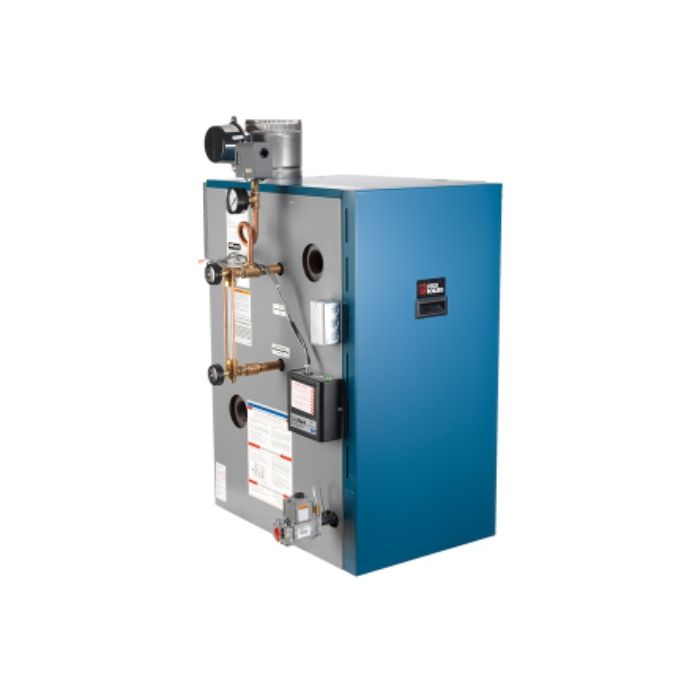

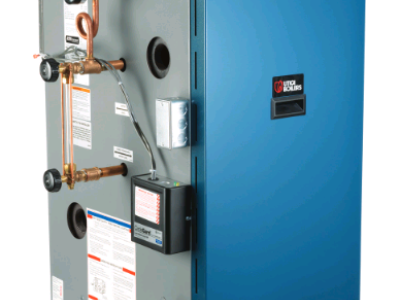

The UTICA BOILERS PEG722503100510 PEG-225-EID is a residential gas-fired boiler with electronic ignition. This steam boiler features a dependable cast iron heat exchanger with cast iron push nipples. The redesigned textured painted jacket features an easy-to-remove, one-piece front panel that conceals and protects the electronic ignition control. It is made in the USA.

• Classic, low profile, compact design
• Dependable cast iron heat exchanger with cast iron push nipple
• Low profile compact design makes it ideal for low clearance installation

Product Highlights

This boiler is ideal for residential use and offers easy piping features, simplifying replacement piping.

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: PEG722503100510
• Country of Origin: USA

Technical Specifications

• AFUE Rating: 83 Percent
• AGA Input Rating: 225 MBH
• Applicable Standard: ASME H, AHRI, ANSI, CSA (US)
• Boiler Material: Cast Iron
• Burner Type: Stainless Steel
• Gas Connection: 3/4 Inch Threaded
• Gas Type: Natural/Propane
• Ignition Type: Electronic, Intermittent Pilot Control
• Inclusions Features: Cast Iron Push Nipple, Pressure High Limit Control, Pressure Gauge, Gauge Glass, Gas Valve, Integral Draft Hood, Vent Damper
• Mounting Type: Floor Mount
• Net IBR Rating: 141 MBH
• Options: Electronic Water Feeder, Manual Reset Pressure Switch and Low Water Cut-Off, Combustible Floor Plate
• Pressure Rating: 15 PSI
• Return Connection: 2 Inch Threaded
• Type: Steam
• Vent Size: 7 Inch
• Venting Type: Atmospheric
• MPN: PEG722503100510
• Manufacturer Part Number: PEG722503100510
• Manufacturer: Utica
• Series: PEG E
• Item Type: Boiler
• BTU Input: 225,000
• Voltage: 120V
• Material: Cast Iron
• Boiler Type: Residential
• Fuel Type: Natural Gas
• Venting: Chimney Vent
• Heat Exchanger Material: Cast Iron
• BTU Output: 188000
• Annual Fuel Usage Efficiency (AFUE): 83.0
• Domestic Hot Water: No
• Vent Type: Atmospheric Chimney
• Building Type: Residential
• Vent Material: Galvanized, B-Vent
• Supply: Female Iron Pipe 2
• Return: Female Iron Pipe 2
• Gas Connection (inches): 3/4
• Square Feet of Steam: 587
• Net BTU: 141000
• AHRI Number: 5649407
• Gas Furnace Efficiency: 83%
• Boiler Sections: 7
• Electrical Phase: 1-Phase
• Exhaust Pipe: Metal
• Gas Valve: Single Stage
• Load Connection: 2 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 145,001+ BTU
• Input Capacity: 225 mbh
• DOE Heating Capacity: 188 MBtu/hr
• Connection Type: 3/4 in NPT
• Housing Material: Cast Iron
• Ignition: Electronic
• Domestic/Import: Domestic
• Input Voltage: 120 Volt AC
• Input Frequency: 60 Hertz
• Phase: 1-Phase
• Input Current: 12 Amp
