Utica Boilers PEG618703100510 Peg-187-Eid Natural Gas Boiler W/Electronic Ignition

Product Description

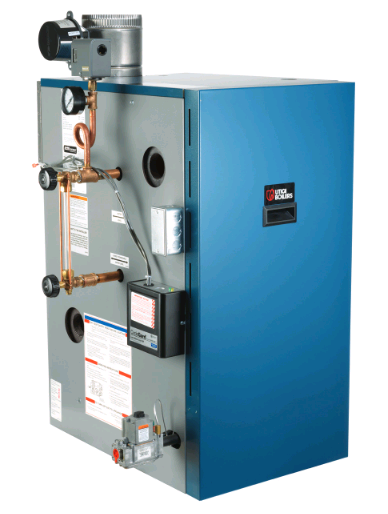

The UTICA BOILERS PEG618703100510 is a residential gas-fired steam boiler with electronic ignition. It features a dependable cast iron heat exchanger with cast iron push nipples that expand at the same rate for a water-tight seal. The boiler has an AGA input rating of 187 MBH and a DOE heating capacity of 156 MBH. Designed for residential applications.

• Classic, low profile, compact design.
• Redesigned textured painted jacket with easy-to-remove, 1-piece front panel.
• Dependable cast iron heat exchanger with cast iron push nipple.

Product Highlights

This Utica Boiler features a low profile compact design, ideal for low clearance installation and easy piping with 2 inch single and dual piping riser options.

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: PEG618703100510
• Country of Origin: USA

Technical Specifications

• AFUE Rating: 82.8 Percent
• AGA Input Rating: 187 MBH
• Additional Information: Input Supply Rating 120 Volt AC 60 Hertz 1-Phase 12 Amp; Number of Burners 6; Application Residential
• Applicable Standard: ASME H, AHRI, ANSI, CSA (US)
• Boiler Material: Cast Iron
• Burner Type: Stainless Steel
• CATALOG NUMBER: PEG618703100510
• Category: HVAC/R & Fans
• DOE Heating Capacity: 156 MBH
• Gas Connection: 3/4 Inch Threaded
• Gas Type: Natural/Propane
• Ignition Type: Electronic, Intermittent Pilot Control
• Inclusions Features: Cast Iron Push Nipple, Pressure High Limit Control, Pressure Gauge, Gauge Glass, Gas Valve, Integral Draft Hood, Vent Damper
• Manufacturer Name: Utica Boilers
• Manufacturer Part Number: PEG187EID
• Mounting Type: Floor Mount
• Net IBR Rating: 117 MBH
• Options: Electronic Water Feeder, Manual Reset Pressure Switch and Low Water Cut-Off, Combustible Floor Plate
• Pressure Rating: 15 PSI
• Return Connection: 2 Inch Threaded
• Series/Model: PEG
• Supply Connection: 2 Inch Threaded
• Type: Steam
• UNSPSC Code: 40102004
• Vent Size: 7 Inch
• Venting Type: Atmospheric
• Fuel Type: Natural Gas
• BTU Input: 187000
• BTU Output: 156000
• Annual Fuel Usage Efficiency (AFUE): 82.8
• Domestic Hot Water: No
• Vent Type: Atmospheric Vent
• Building Type: Residential
• Length (inches): 30.375
• Width (inches): 20.625
• Height of Boiler (inches): 35.875
• Vent Material: Galvanized, B-Vent
• Supply: Female Iron Pipe 2
• Return: Female Iron Pipe 2
• Gas Connection (inches): 3/4
• Square Feet of Steam: 488
• Net BTU: 117000
• Model: PEG618703100510
• AHRI Number: 5649406
• Product Height (in): 35.875
• Gas Furnace Efficiency: 83%
• Product Length (in): 30.375
• Boiler Sections: 6
• Product Width (in): 20.625
• Electrical Phase: 1-Phase
• Exhaust Pipe: Metal
• Fuel Source: Natural Gas
• Gas Valve: Single Stage
• Load Connection: 2 inch
• Max Overcurrent Protection: 15 amps
• Weight (lbs): 512.000000
• Primary Heating Capacity: 145,001+
• Voltage: 120
