Utica Boilers PEG515003100510 PEG-150-EID Nat Gas Boiler W/Electronic Ignition

Product Description

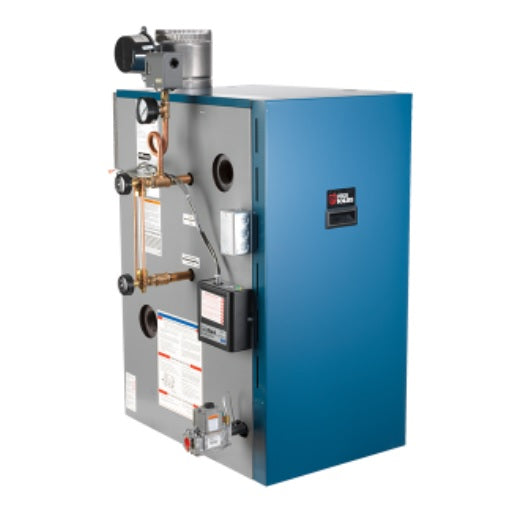

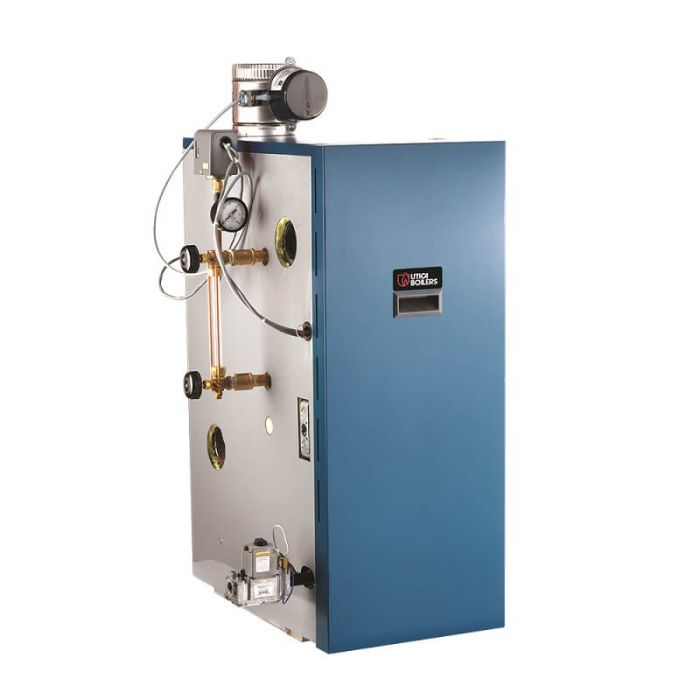

The UTICA BOILERS PEG515003100510 PEG-150-EID is a residential gas-fired steam boiler with electronic ignition. It features a dependable cast iron heat exchanger with cast iron push nipples for a water-tight seal and greater longevity. The boiler has an AGA input rating of 150 MBH and a DOE heating capacity of 125 MBH. Designed for residential applications.

• Classic, low profile, compact design.
• Dependable cast iron heat exchanger with cast iron push nipple.
• Electronic, Intermittent Pilot Control.

Product Highlights

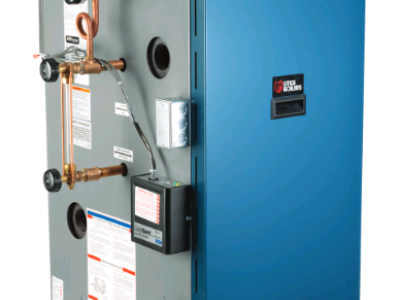

This boiler features a redesigned textured painted jacket with an easy-to-remove front panel, simplifying inspection and maintenance.

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: PEG515003100510
• Country of Origin: USA

Technical Specifications

• AFUE Rating: 82.6 Percent
• AGA Input Rating: 150 MBH
• Applicable Standard: ASME H, AHRI, ANSI, CSA (US)
• Boiler Material: Cast Iron
• Burner Type: Stainless Steel
• Gas Connection: 1/2 Inch Threaded
• Gas Type: Natural/Propane
• Ignition Type: Electronic, Intermittent Pilot Control
• Inclusions Features: Cast Iron Push Nipple, Pressure High Limit Control, Pressure Gauge, Gauge Glass, Gas Valve, Integral Draft Hood, Vent Damper
• Mounting Type: Floor Mount
• Net IBR Rating: 94 MBH
• Options: Electronic Water Feeder, Manual Reset Pressure Switch and Low Water Cut-Off, Combustible Floor Plate
• Pressure Rating: 15 PSI
• Return Connection: 2 Inch Threaded
• Supply Connection: 2 Inch Threaded
• Type: Steam
• Vent Size: 6 Inch
• Venting Type: Atmospheric
• Additional Information: Input Supply Rating 120 Volt AC 60 Hertz 1-Phase 12 Amp; Number of Burners 5; Application Residential
• Category: HVAC/R & Fans
• Manufacturer Name: Utica Boilers
• Manufacturer Part Number: PEG150EID
• Series/Model: PEG
• MPN: PEG515003100510
• Manufacturer: Utica
• Series: PEG E
• Item Type: Boiler
• BTU Input: 150000
• Voltage: 120V
• Material: Cast Iron
• Boiler Type: Residential
• Fuel Type: Natural Gas
• Venting: Chimney Vent
• Heat Exchanger Material: Cast Iron
• BTU Output: 125000
• Annual Fuel Usage Efficiency (AFUE): 82.6
• Domestic Hot Water: No
• Vent Type: Atmospheric Vent
• Building Type: Residential
• Vent Material: Galvanized, B-Vent
• Supply: Female Iron Pipe 2
• Return: Female Iron Pipe 2
• Gas Connection (inches): 1/2
• Square Feet of Steam: 391
• Electrical Phase: 1-Phase
• Exhaust Pipe: Metal
• Gas Valve: Single Stage
• Load Connection: 2 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 145,001+ BTU
• AHRI Number: 5649405
• Size: 150 MBH
• Efficiency: 82.6%
• Brand: Utica Boilers
