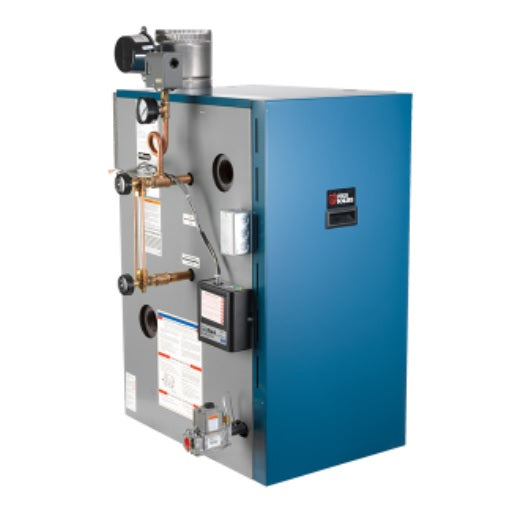

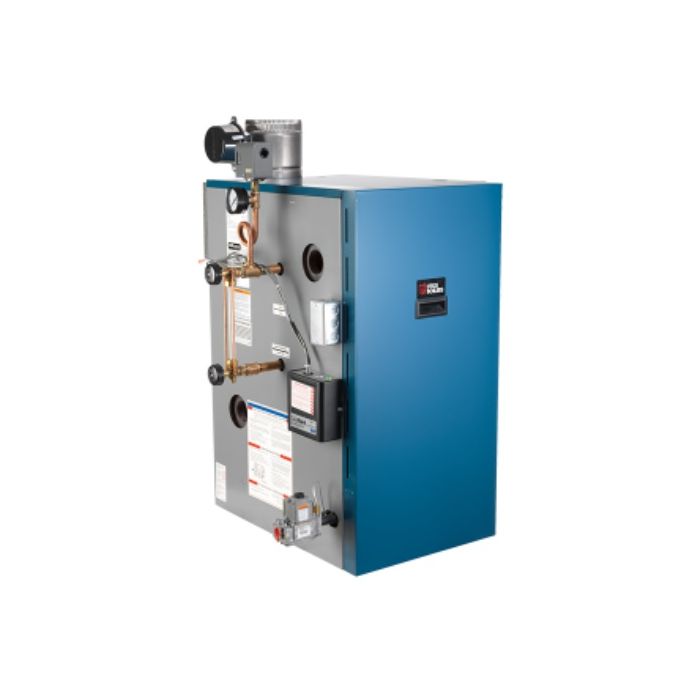

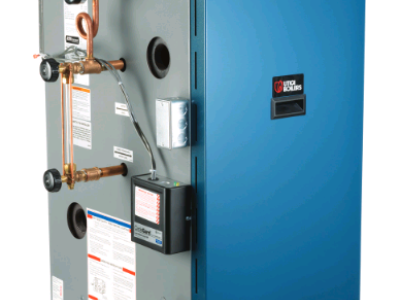

Utica Boilers PEG411203100510 PEG-112-EID Natural Gas Boiler 112 MBH

Product Description

The Utica Boilers PEG411203100510 is a residential gas-fired steam boiler with electronic ignition. It features a dependable cast iron heat exchanger with cast iron push nipples. The boiler has an AGA input rating of 112 MBH and a DOE heating capacity of 93 MBH with an AFUE rating of 82.4 percent. Designed for atmospheric venting, it includes an integral draft hood and vent damper.

• Features a classic, low profile, compact design.
• Equipped with a dependable cast iron heat exchanger and cast iron push nipples.
• Includes pressure high limit control, pressure gauge, and gauge glass.

Product Highlights

The Utica PEG-112-EID is ideal for residential use, offering efficient and reliable steam heat with its durable cast iron construction and electronic ignition.

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: PEG411203100510
• Country of Origin: USA

Technical Specifications

• AFUE Rating: 82.4 Percent
• AGA Input Rating: 112 MBH
• Applicable Standard: ASME H, AHRI, ANSI, CSA (US)
• Boiler Material: Cast Iron
• Burner Type: Stainless Steel
• DOE Heating Capacity: 93 MBH
• Gas Connection: 1/2 Inch Threaded
• Gas Type: Natural/Propane
• Ignition Type: Electronic, Intermittent Pilot Control
• Inclusions Features: Cast Iron Push Nipple, Pressure High Limit Control, Pressure Gauge, Gauge Glass, Gas Valve, Integral Draft Hood, Vent Damper
• Mounting Type: Floor Mount
• Net IBR Rating: 70 MBH
• Options: Electronic Water Feeder, Manual Reset Pressure Switch and Low Water Cut-Off, Combustible Floor Plate
• Pressure Rating: 15 PSI
• Return Connection: 2 Inch Threaded
• Supply Connection: 2 Inch Threaded
• Type: Steam
• Vent Size: 5 Inch
• Venting Type: Atmospheric
• MPN: PEG411203100510
• Manufacturer: Utica
• Series: PEG E
• Item Type: Boiler
• BTU Input: 112,000
• Voltage: 120V
• Material: Cast Iron
• Boiler Type: Residential
• Fuel Type: Natural Gas
• Venting: Chimney Vent
• BTU Output: 93000
• Annual Fuel Usage Efficiency (AFUE): 82.4
• Heat Exchanger Material: Cast Iron
• Domestic Hot Water: No
• Vent Type: Atmospheric Vent
• Building Type: Residential
• Supply: Female Iron Pipe 2
• Return: Female Iron Pipe 2
• Gas Connection (inches): 1/2
• Square Feet of Steam: 292
• Vent Size (inches): 5
• AHRI Number: 5649403
• Boiler Sections: 4
• Electrical Phase: 1-Phase
• Exhaust Pipe: Metal
• Gas Valve: Single Stage
• Load Connection: 2 inch
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 110,001 - 115,000 BTU
• Size: 112 MBH
