Utica Boilers PEG307503100510 Peg-075-Eid Nat Gas Boiler W/Electronic Ignition 75 MBH

Product Description

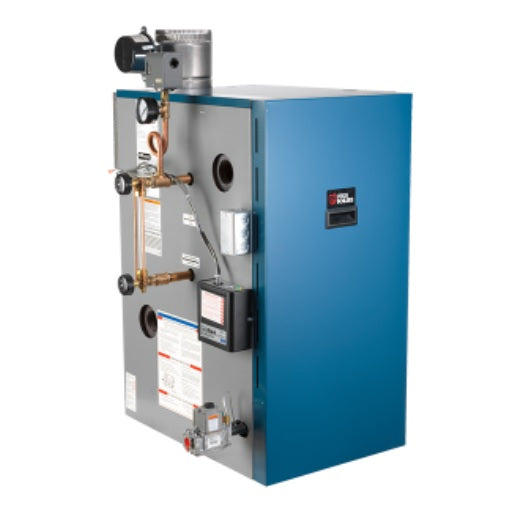

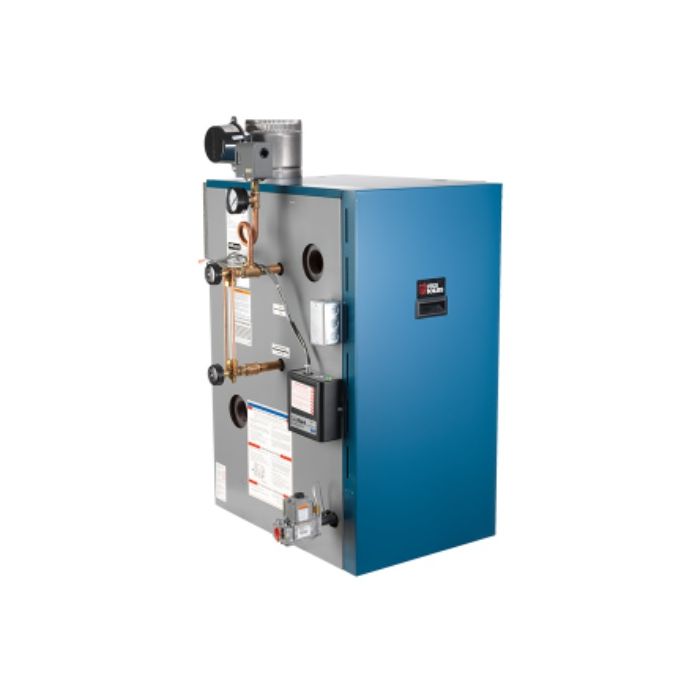

The Utica Boilers PEG307503100510 Peg-075-Eid is a residential gas-fired steam boiler with electronic ignition. It features an AGA input rating of 75 MBH and a DOE heating capacity of 62 MBH. The boiler is constructed of cast iron and includes a stainless steel burner. Designed for residential applications, it operates at 120V AC.

• Classic, low profile, compact design
• Dependable cast iron heat exchanger with cast iron push nipple
• Redesigned textured painted jacket features an easy to remove, 1-piece front panel that conceal and protect the electronic ignition control

Product Highlights

This Utica Boiler features a low profile design, electronic ignition, and a durable cast iron heat exchanger for efficient and reliable steam heat.

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: PEG307503100510
• Country of Origin: USA

Technical Specifications

• afue_rating: 82.2 Percent
• aga_input_rating: 75 MBH
• applicable_standard: ASME H, AHRI, ANSI, CSA (US)
• boiler_material: Cast Iron
• burner_type: Stainless Steel
• catalog_number: PEG307503100510
• category: HVAC/R & Fans
• doe_heating_capacity: 62 MBH
• gas_connection: 1/2 Inch Threaded
• gas_type: Natural/Propane
• ignition_type: Electronic, Intermittent Pilot Control
• inclusions_features: Cast Iron Push Nipple, Pressure High Limit Control, Pressure Gauge, Gauge Glass, Gas Valve, Integral Draft Hood, Vent Damper
• manufacturer_name: Utica Boilers
• mounting_type: Floor Mount
• net_ibr_rating: 47 MBH
• options: Electronic Water Feeder, Manual Reset Pressure Switch and Low Water Cut-Off, Combustible Floor Plate
• pressure_rating: 15 PSI
• return_connection: 2 Inch Threaded
• series_model: PEG
• supply_connection: 2 Inch Threaded
• type: Steam
• unspsc_code: 40102004
• vent_size: 5 Inch
• venting_type: Atmospheric
• btu_input: 75,000
• afue: 82%
• voltage: 120V
• material: Cast Iron
• boiler_type: Residential
• fuel_type: Natural Gas
• venting: Chimney Vent
• product_height (in): 35.875
• product_length (in): 28.375
• boiler_sections: 3
• product_width (in): 10.875
• electrical_phase: 1-Phase
• exhaust_pipe: Metal
• gas_valve: Single Stage
• load_connection: 2 inch
• max_overcurrent_protection: 15 amps
• primary_heating_capacity: 70,001 - 75,000 BTU
• input_voltage: 120 Volt AC
• input_frequency: 60 Hertz
• input_phase: 1-Phase
• input_current: 12 Amp
