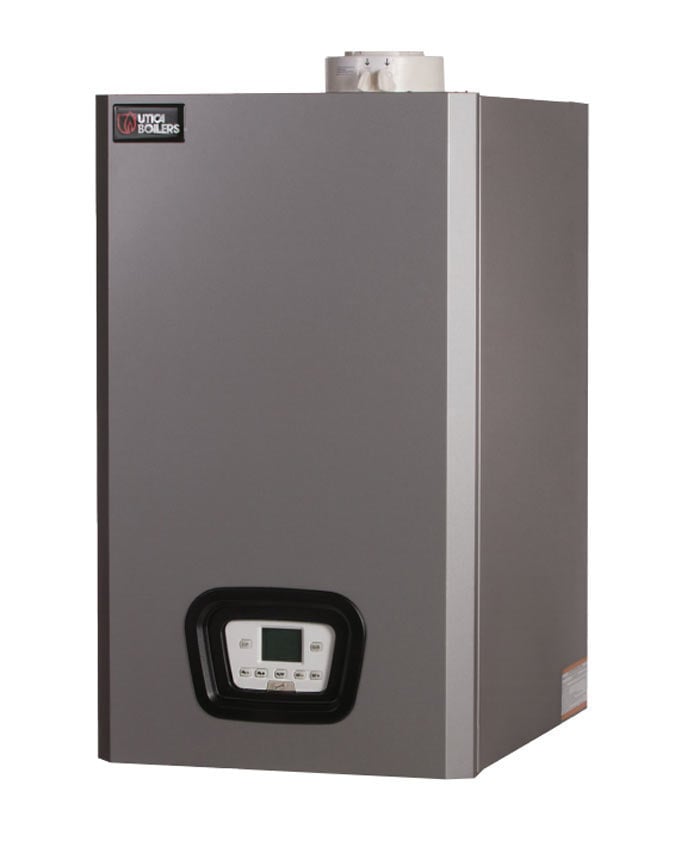

Utica Boilers MAH-165 Heat Only Condensing Boiler Less Pump 164 MBH

Product Description

The Utica Boilers MAH-165 Heat Only Condensing Boiler is a condensing gas boiler with a 1-1/4 inch threaded supply and return connection. It supports natural or propane gas with a 3/4 inch female threaded gas connection. The AGA input rating is 164 MBH and DOE heating capacity is 153 MBH. The boiler is wall mountable.

• 95 Percent AFUE Rating
• 316L Stainless Steel Heat Exchanger and Burner
• Automatically Sets up the Boiler During Initial Startup

Product Highlights

This boiler features a user display interface, a 3-way water diverting valve, and an induced draft fan. It also includes a circulator pump, low water pressure switch, and temperature/pressure gauge.

Product Information

Standard Information

• Brand: UTICA BOILERS
• Manufacturer Part Number: MAH-165

Technical Specifications

• AFUE Rating: 95 Percent
• AGA Input Rating: 164 MBH
• Applicable Standard: ASME H, AHRI, CSA, CSA (Canada and US)
• Boiler Material: 316L Stainless Steel
• Burner Type: 316L Stainless Steel
• DOE Heating Capacity: 153 MBH
• Gas Connection: 3/4 Inch Female Threaded
• Gas Type: Natural/Propane
• Ignition Type: High Limit/Electronic, Direct Spark
• Inclusions Features: Boiler Control Module, User Display Interface, Heat Exchanger, 3-Way Water Diverting Valve, Combustion, Assembled Boiler with Jacket, Induced Draft Fan, Circulator Pump, Low Water Pressure Switch, Air Pressure Switch, Temperature/Pressure Gauge
• Mounting Type: Wall Mount
• Net IBR Rating: 133 MBH
• Options: Outdoor Temperature Sensor, Indirect Tank Sensor, Floor Stand Kit
• Pressure Rating: 43.5 PSI
• Relief Valve Details: Pressure Relief Valve Supplied
• Return Connection: 1-1/4 Inch Threaded
• Supply Connection: 1-1/4 Inch Threaded
• Type: Hot Water
• Venting Type: Coaxial and Pipe
• Vent Size: 2 Inch or 4 Inch Coaxial, 2 Inch or 3 Inch Pipe
• Water Content: 1-1/4 Gallon
• Input Voltage: 120 Volt AC
• Input Frequency: 60 Hertz
• Phase: 1-Phase
• Input Current: 12 Amp
• Energy Star Certified: Yes
• Fuel Type: Natural Gas,Propane Gas
• Input Capacity: 164,000 Btu/hr
