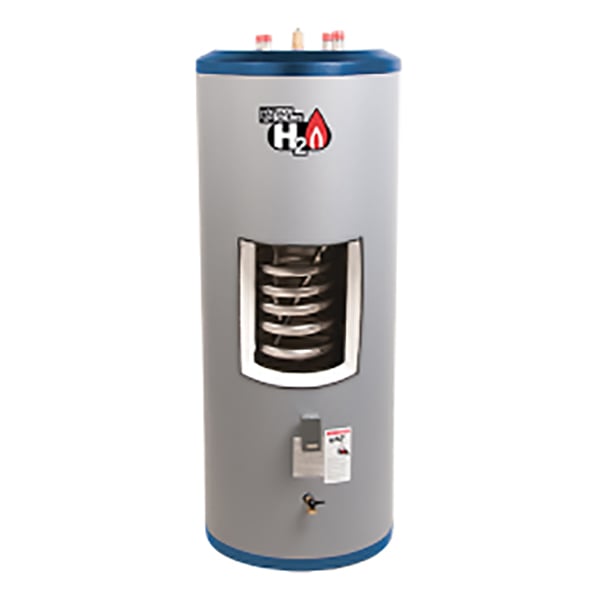

Utica Boilers H2OI80UB Utica Indirect Water Heater 80 Gallon

Brand: UTICA BOILERS
SKU: H2OI80UB
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$3,622.02
$3,622.02
LTL Delivery

This product weighs 140 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Utica Boilers H2OI80UB indirect water heater features a stainless steel tank with a capacity of 80 gallons. Designed for residential and commercial applications, it meets CAN/CSA C22.2, ETL (Canada and US), and UL 174 standards. The unit has a single coil heat exchanger and 2.25 Inch EPS insulation.

  • Top connection for easy installation
  • Stainless steel dip tube
  • Thermoplastic jacket resists dents, scratches, and corrosion

Product Highlights

This indirect water heater provides efficient water heating with a durable stainless steel tank and easy installation.

Product Information

Standard Information

  • Brand: UTICA BOILERS
  • Manufacturer Part Number: H2OI80UB
  • Country of Origin: USA

Technical Specifications

  • Applicable Standard: CAN/CSA C22.2, ETL (Canada and US), UL 174
  • Application: Residential, Commercial
  • Boiler Supply Return Connection: 1-1/4 Inch Threaded x 1-1/4 Inch Threaded
  • Coil Surface Area: 8.2 Square Foot
  • GPH Recovery: 271 GPH at 140 Deg F/248 GPH at 115 Deg F (First Hour), 199 GPH at 140 Deg F/276 GPH at 115 Deg F (Continuous)
  • Gross Boiler Output: 149390 BTU/Hour
  • Head Loss: 6 Foot Water Column
  • Heat Exchanger Coil Type: Single Coil
  • Inlet Outlet Connection: 1 Inch Threaded x 1 Inch Threaded (Domestic), 1 Inch Threaded x 1 Inch Threaded (Boiler)
  • Insulation Details: 2.25 Inch EPS
  • Pressure Rating: 150 PSI
  • Relief Valve Details: T and P Relief Valve Factory Installed
  • Tank Capacity: 80 Gallon
  • Tank Dimensions: 28 Inch Diameter x 56 Inch Height
  • Tank Material: Stainless Steel
  • Manufacturer Part Number: H2OI80UB
  • Brand: Utica Boilers
  • Product Type: Indirect Water Heater
  • Size: 80 Gallon
  • Series: H2O
  • Heat Exchanger Material: Stainless Steel
  • Heat Exchanger Style: Coil
  • Number of Heat Exchangers: 1
  • Height (inches): 56
  • Diameter/Width (inches): 28.0
  • Boiler Water Connection: 1 Male
  • Water Inlet Size: 1 Male
  • Hot Water Outlet Size: 1 Male
  • Boiler Connection Location: Top
  • Input Water Temperature: 180 degrees
  • Domestic Water Temperature: 140 degrees
  • First Hour Rating (GPH): 271
  • Continuous Flow (GPH): 199
  • Relief Valve: Yes
  • Boiler Output Required (BTU): 149390
  • Approximate Weight (pounds): 140
