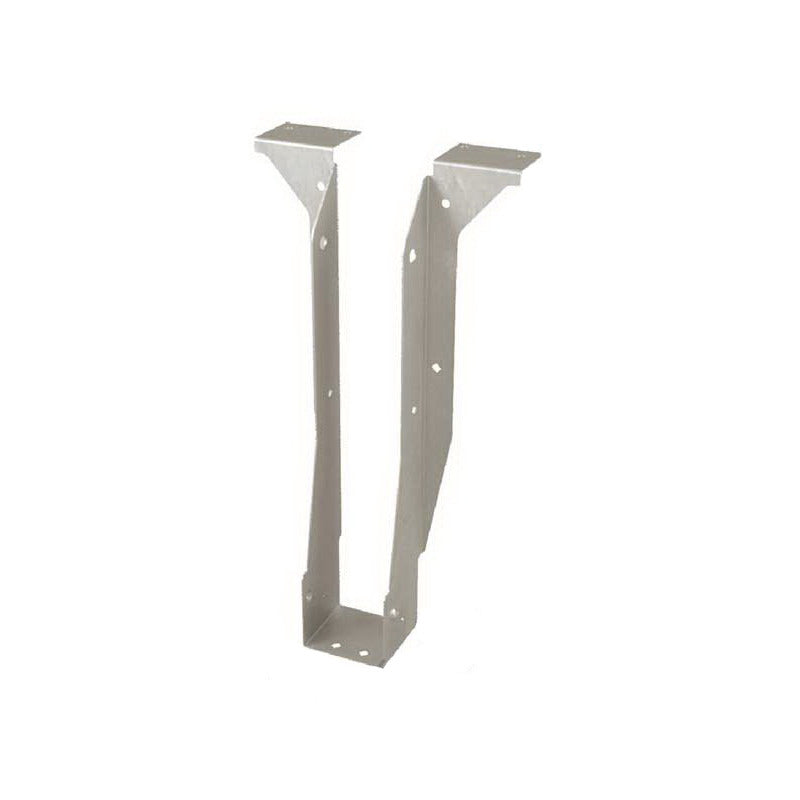

USP UTFL2014 USP TFL Series 2 x 2-1/8 x 14 18 ga Top Mount Joist Hanger

Product Description

The USP TFL Series 2 x 2-1/8 x 14 18 gauge top mount joist hanger, MPN UTFL2014, is designed for strong support in various framing applications. This hanger is ideal for accommodating all header types, making it suitable for diverse installation scenarios.

• 1-1/2 inches top flange depth
• Compatible with both back-to-back installations and all header types
• Incorporates MiTek's patented Seat Cleat for ease of use

Product Highlights

This joist hanger provides reliable support and quick installation with its innovative design.

Product Information

Standard Information

• Brand: USP
• Part Number: 337TFL2014

Technical Specifications

• Load Capacity: Down: LVL (100) 1585 lb, PSL (100) 1585 lb, LSL (100) 1585 lb, SPF (100) 1260 lb, DF I-Joist (100) 1245 lb, DF/SP (100) 1585 lb; Uplift: DF/SP (160) 130 lb
• Gauge: 18
• Finish: Galvanized
• Material: Steel
• Fastener Size: (4) 0.148 x 3 inches Top, (2) 0.148 x 3 inches Face (Header), (2) 0.148 x 1-1/2 inches (Joist)
