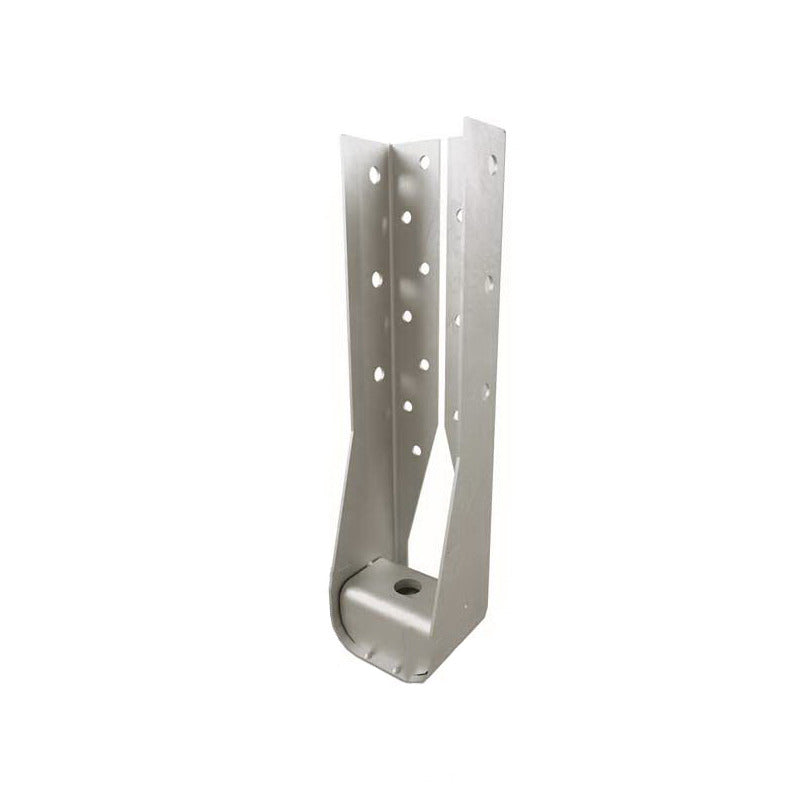

USP UPHD5A PHD Series 11-11/16 x 3 x 2-5/8 G90 Galvanized 14 ga Steel Holdown

Product Description

The USP UPHD5A PHD Series holdown is designed with a pre-deflected base which minimizes deflection while providing uplift resistance. This product installs easily with screws, eliminating the need for pre-drilling and reducing potential fastener slip. Unlike traditional holdowns, this model requires no thru bolts to countersink, making installation simpler and quicker.

• Pre-deflected base minimizes deflection.
• Installs with screws to prevent fastener slip.
• No countersinking or special tools required.

Product Highlights

Ideal for applications where uplift resistance is critical, the PHD Series holdown provides a robust solution for framing connections.

Product Information

Standard Information

• Brand: USP
• Part Number: 337PHD5A

Technical Specifications

• Depth: 2-5/8 inches
• Gauge: 14
• Finish: G90 Galvanized
• Material: Steel
• Fastener Size: (1) 5/8 inches (Anchor Bolt), (14) 1/4 x 3 inches WS3 (Wood Screws)
• Fastener Type: Anchor Bolt, Wood Screw
• Allowable Tension: DF Allowable Loads (Uplift) (115): 6755 lb; SPF Allowable Loads (Uplift) (115): 5670 lb
• Anchor Bolt Diameter: 5/8 inches
