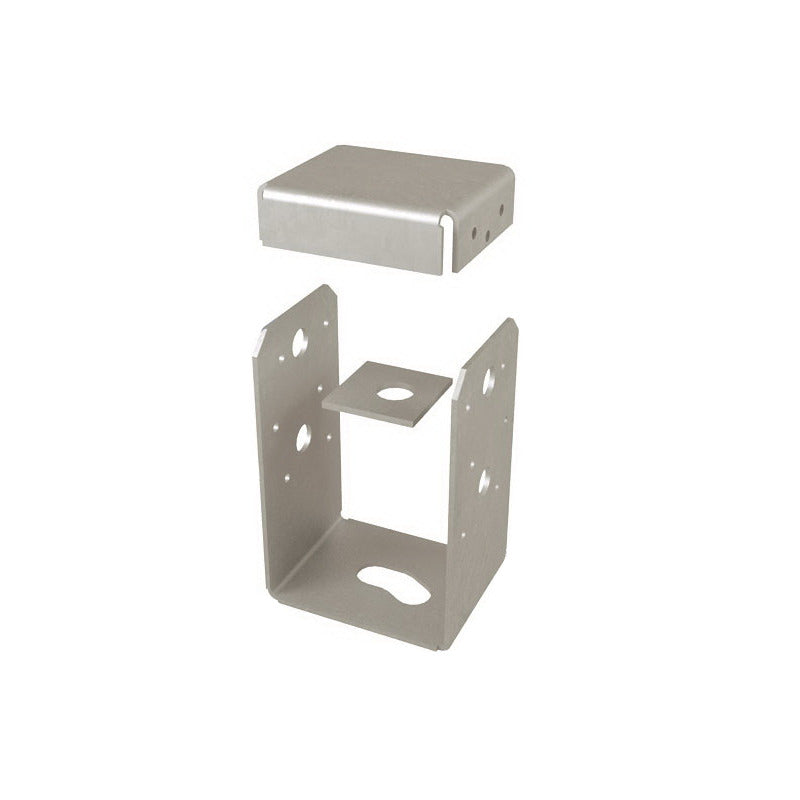

USP UPAU88 USP PAU Series 7-1/16 x 7-1/2 x 7-3/16 G90 Galvanized 12 ga Steel Post Anchor

Product Description

The USP UPAU88 is a post anchor designed to secure wood posts to concrete footings. It features a one inch stand-off plate which elevates posts above concrete surfaces. This is essential for complying with building codes. The post anchor provides moisture damage protection to enhance durability.

• Constructed from G90 galvanized steel for corrosion resistance.
• Supports higher uplift resistance with optional bolt fastening.
• Compatible with standard anchor bolts and nails for versatile installation.

Product Highlights

This post anchor is ideal for use in various framing applications where stability and durability are required.

Product Information

Standard Information

• Brand: USP
• Part Number: 337PAU88

Technical Specifications

• Material: Steel
• Finish: G90 Galvanized
• Load Capacity: Allowable Loads: Bearing 24895 lb, Uplift 3315 lb
• Gauge: 12
• Fastener Size: (2) 5/8 in (Anchor Bolt), (14) 0.162 x 3-1/2 in Nails (Post)
