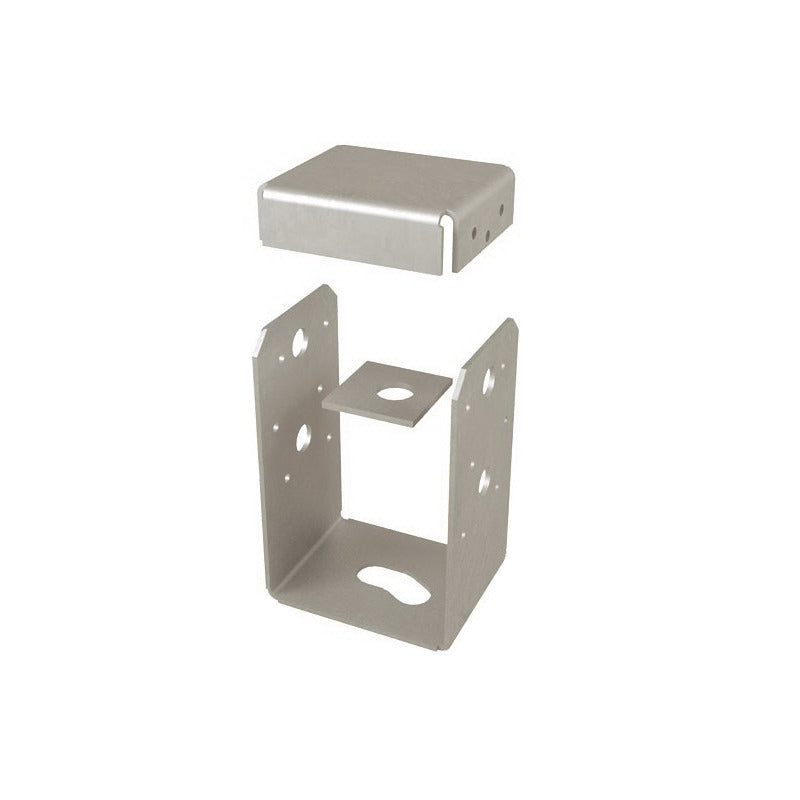

USP UPAU66 USP PAU Series 5 x 5-1/2 x 6 G90 Galvanized 10 ga Steel Post Anchor

Product Description

The USP UPAU66 is a post anchor designed for securing wood posts to concrete footings. It protects against moisture damage and features a one inch stand-off plate that elevates wood posts above concrete surfaces, complying with building codes.

• Higher uplift-resistance
• Optional bolt fastening to post
• Constructed from G90 galvanized steel

Product Highlights

This post anchor is built to withstand significant loads and provides added protection and stability in construction.

Product Information

Standard Information

• Brand: USP
• UPC: 081942077909

Technical Specifications

• Material: Steel
• Finish: G90 Galvanized
• Gauge: 10
• Allowable Loads: Bearing 16005 lb, Uplift 2425 lb
• Fastener Size: (1) 5/8 in Anchor Bolt, (12) 0.162 x 3-1/2 in Nails, (2) 1/2 in Bolts
