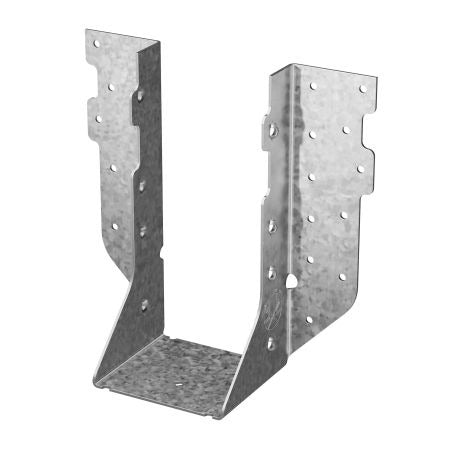

USP UMUS26 USP MUS Series 2 x 1-9/16 x 5-1/16 18 ga Slant Nail Face-Mount Joist Hanger

Product Description

The USP UMUS26 is a face-mount joist hanger designed for strong structural support. This product features double shear nailing, allowing for effective load distribution and easier installation. The design incorporates MiTek's dimple which enables nailing at angles between 30 to 45 degrees, maximizing its load-bearing capacity.

• Material: Galvanized steel for durability
• Load Ratings: Supports high loads with fewer nails
• Installation: Quick and efficient setup

Product Highlights

The USP UMUS26 joist hanger is built for high performance in framing applications. It is suited for residential and commercial projects requiring reliable support.

Product Information

Standard Information

• Brand: USP
• Part Number: 337MUS26

Technical Specifications

• Material: Galvanized steel
• Finish: Galvanized
• Gauge: 18
• Fastener Size: (6) 0.148 x 3 inches (Header), (6) 0.148 x 3 inches (Joist)
• Allowable Loads (DF/SP): Floor (100) 1285 lb, Roof (115) 1475 lb, Roof (125) 1605 lb, Uplift (160) 865 lb
• Allowable Loads (SPF): Floor (100) 1190 lb, Roof (115) 1365 lb, Roof (125) 1475 lb, Uplift (160) 760 lb
