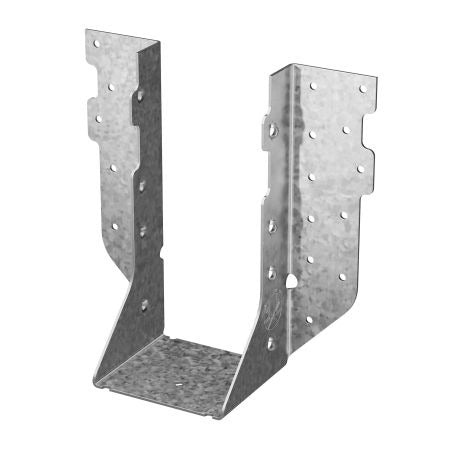

USP UJUS28 USP JUS Series 1-3/4 x 1-9/16 x 6-5/8 18 ga Slant Nail Face-Mount Joist Hanger

Product Description

The USP JUS Series UJUS28 is a slant nail face-mount joist hanger. This joist hanger is made to support beams in construction projects. It features double shear nailing, which enhances load capacity while reducing the number of nails required.

• Double shear nailing for greater load capacity
• Allows 30 to 45 degree nailing through the joist
• Designed for fast and efficient installation

Product Highlights

Perfect for framing projects where strong support is needed.

Product Information

Standard Information

• Brand: USP
• Part Number: 337JUS28

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Gauge: 18
• Fastener Size: (6) 0.148 x 3 inches (Header), (4) 0.148 x 3 inches (Joist)
• Allowable Loads (DF/SP): Floor (100) 1110 lb, Roof (115) 1270 lb, Roof (125) 1375 lb, Uplift (160) 1000 lb
• Allowable Loads (SPF): Floor (100) 980 lb, Roof (115) 1120 lb, Roof (125) 1210 lb, Uplift (160) 800 lb
