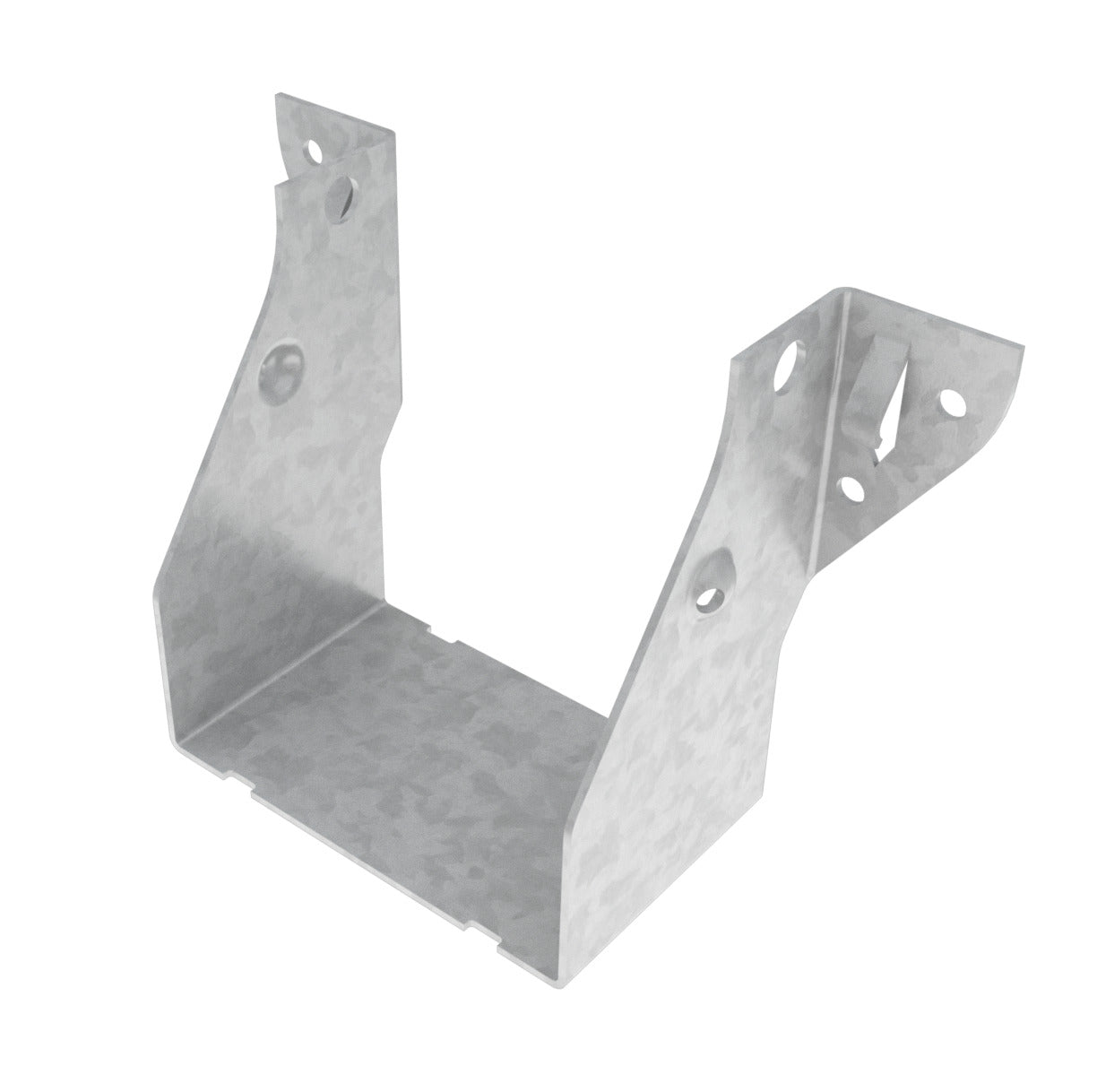

USP UJUS262 USP JUS Series 2 x 3-1/8 x 5-1/4 18 ga Slant Nail Face-Mount Joist Hanger

Product Description

The USP UJUS262 is a part of the USP JUS series and is designed as a face-mount joist hanger. This product allows for slant nail placement at a range of thirty to forty-five degrees. This feature provides efficient nailing through the joist into the header to support higher loads while reducing the number of nails needed.

• Double shear nailing for enhanced load support
• Galvanized finish for durability
• Compatible with multiple fastening sizes

Product Highlights

The USP JUS262 joist hanger is engineered for quick installation and high load capacities, making it suitable for various framing applications.

Product Information

Standard Information

• Brand: USP
• Part Number: 337JUS262

Technical Specifications

• Gauge: 18
• Finish: Galvanized
• Fastener Size: (4) 0.162 x 3-1/2 in (Header), (4) 0.162 x 3-1/2 in (Joist)
• Load: DF/SP Allowable Loads: Floor (100) 1040 lb, Roof (115) 1185 lb, Roof (125) 1290 lb, Uplift (160) 1255 lb; SPF Allowable Loads: Floor (100) 915 lb, Roof (115) 1045 lb, Roof (125) 1135 lb, Uplift (160) 1000 lb
