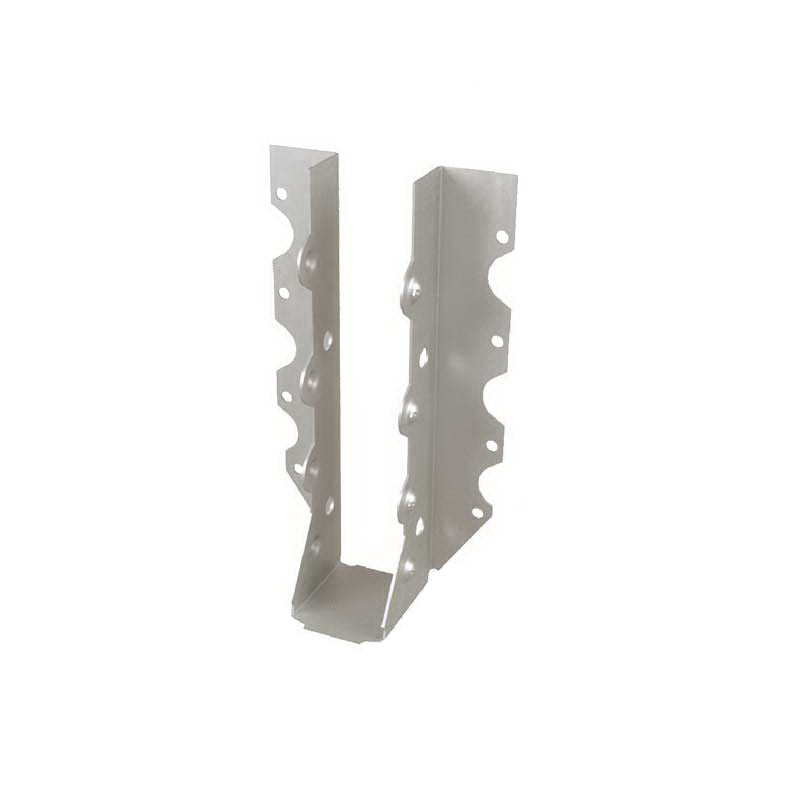

USP UJUS210 USP JUS Series 1-3/4 x 1-9/16 x 7-3/4 18 ga Slant Nail Face-Mount Joist Hanger

Product Description

The USP UJUS210 is a part of the USP JUS series designed for strong support in various framing applications. This slant nail face-mount joist hanger offers a dimension of one and three-quarters inches by one and nine-sixteenths inches by seven and three-quarter inches. It is made of galvanized steel, providing durability in construction.

• Double shear nailing for increased load capacity
• Suitable for various joist sizes
• Fast installation with a reduced number of nails required

Product Highlights

This hanger facilitates efficient nailing through the joist into the header, resulting in significant load improvements.

Product Information

Standard Information

• Brand: USP
• Part Number: 337JUS210

Technical Specifications

• Material: Galvanized Steel
• Finish: Galvanized
• Gauge: 18
• Fastener Size: (8) 0.148 x 3 inches (Header), (4) 0.148 x 3 inches (Joist)
• Load: DF/SP Allowable Loads - Floor (100) 1350 lb, Roof (115) 1545 lb, Roof (125) 1670 lb, Uplift (160) 1000 lb
