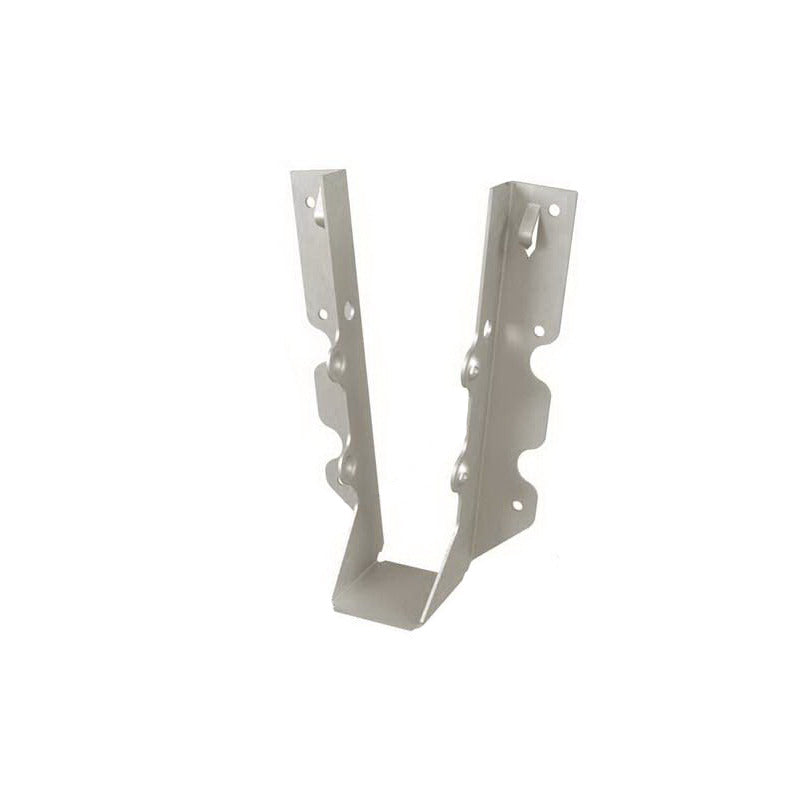

USP UHUS179 USP HUS Series 3 x 1-13/16 x 9-1/8 16 ga Slant Nail Face-Mount Joist Hanger

Product Description

The USP HUS Series joist hanger, part number UHUS179, is designed for use in framing connections. This face-mount hanger helps secure joists and improve load performance. It features a slant nail design that permits double shear nailing through the joist into the header. This setup leads to greater load capacities and reduced nailing requirements.

• Constructed from galvanized steel for strength and durability.
• Allows for easy installation with fewer nails.
• Designed for joist depths of up to nine and one-eighth inches.

Product Highlights

The USP HUS Series joist hanger effectively combines strength and efficiency for framing tasks.

Product Information

Standard Information

• Brand: USP
• Part Number: 337HUS179

Technical Specifications

• Load: DF/SP Allowable Loads: Floor (100) 5580 lb, Roof (115) 6040 lb, Roof (125) 6040 lb, Uplift (160) 4110 lb
• Gauge: 16
• Finish: Galvanized
• Material: Steel
• Fastener Size: (30) 0.162 x 3-1/2 in (Header), (10) 0.162 x 3-1/2 in (Joist)
• Nominal Product Depth: 0
