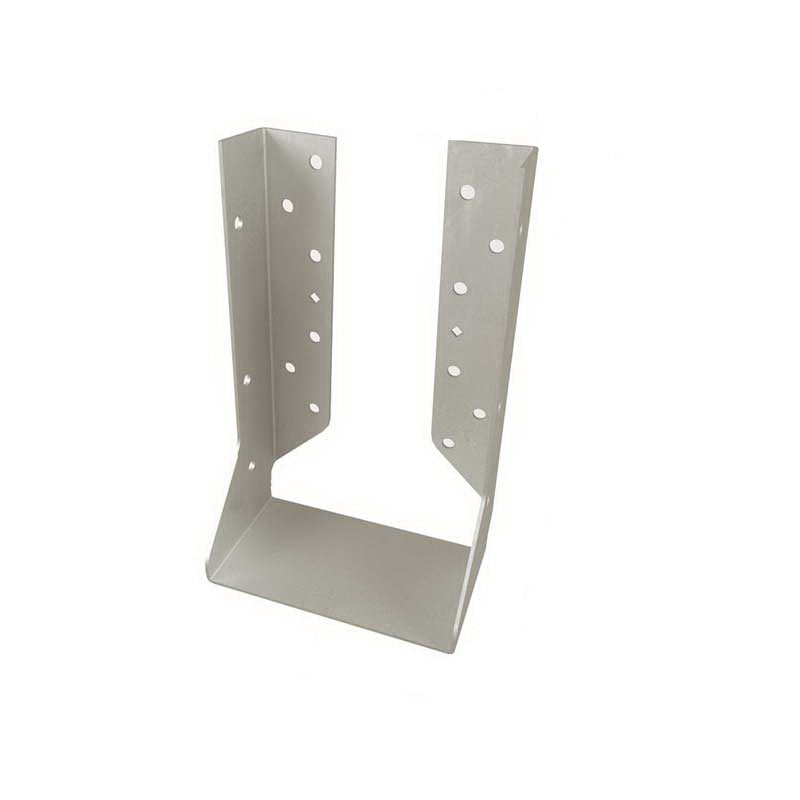

USP UHDQ412IF USP HDQIF Series 3 x 3-9/16 x 11 14 ga Inverted Flange Face-Mount Hanger

Product Description

The USP UHDQ412IF is a face-mount hanger designed for quick and efficient installation. This inverted flange hanger uses wood screws, allowing for a straightforward setup without the need for drilling bolt holes. The construction is made from fourteen gauge galvanized steel, ensuring durability and strength.

• Simplifies installation with wood screws.
• Constructed from fourteen gauge steel for strength.
• Galvanized finish for corrosion resistance.

Product Highlights

Designed for both floor and roof applications, the UHDQ412IF supports heavy loads with ease. The hanger delivers reliable performance across various projects.

Product Information

Standard Information

• Brand: USP
• Part Number: 337HDQ412IF
• UPC: 081942124436

Technical Specifications

• Gauge: 14
• Finish: Galvanized
• Fastener Size: (14) 1/4 x 3 in (Header), (6) 1/4 x 3 in (Joist)
• DF/SP Allowable Loads: Floor (100) 5605 lb, Roof (115) 5605 lb, Roof (125) 5605 lb, Uplift (160) 3280 lb
• SPF Allowable Loads: Floor (100) 4980 lb, Roof (115) 4980 lb, Roof (125) 4980 lb, Uplift (160) 2775 lb
