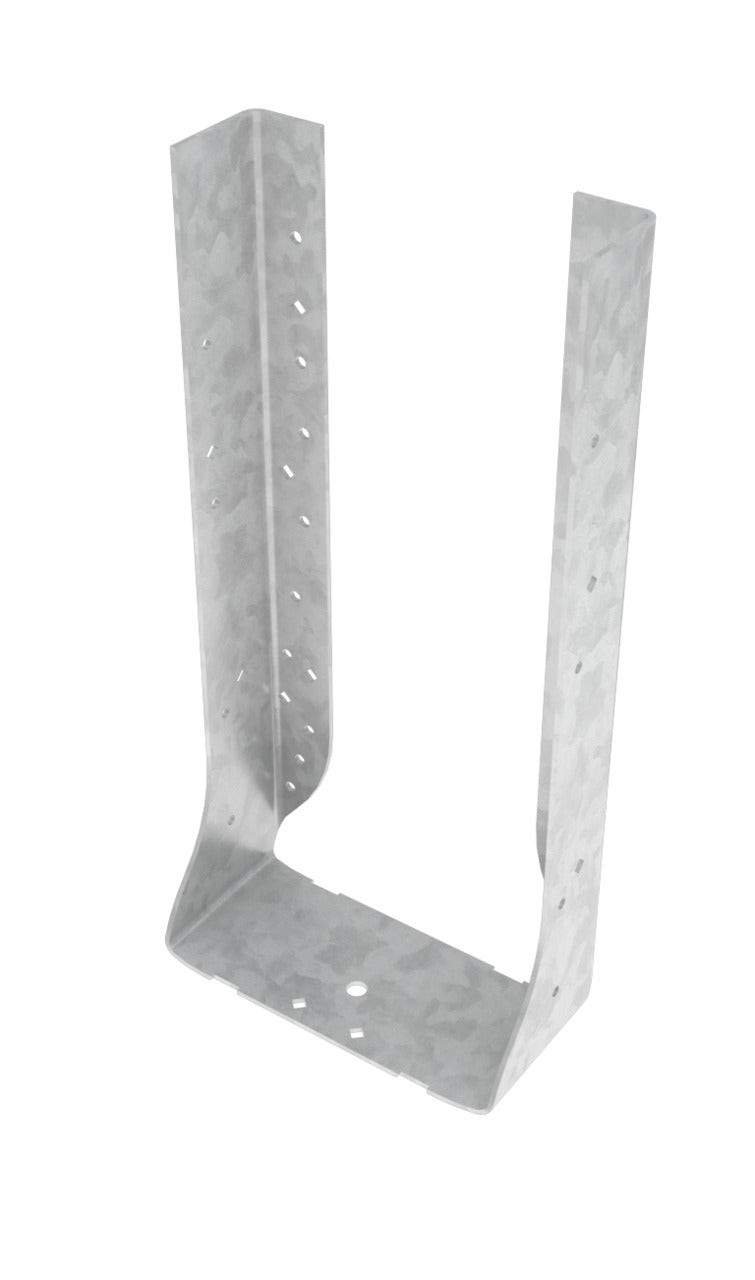

USP UHD46IF USP HD Series 2-1/2 x 3-9/16 x 5-1/16 heavy duty face-mount hanger

Product Description

The USP UHD46IF is a heavy-duty face-mount hanger designed to provide strong support for headers, joists, and trusses. This hanger features a unique combination of round and diamond holes, which allows for maximum design flexibility and load capacity. The construction contains durable galvanized steel, ensuring longevity in various applications.

• Heavy-duty design supports considerable loads.
• Utilizes additional diamond holes for enhanced nailing capacity.
• G90 galvanized finish provides resistance against corrosion.

Product Highlights

Use this hanger to secure both floor and roof structures efficiently. Its design facilitates installation while complying with standards for heavy-duty applications.

Product Information

Standard Information

• Brand: USP
• UPC: 081942033233

Technical Specifications

• Load Capacity: Floor (100) 1085 lb, Roof (115) 1220 lb, Roof (125) 1310 lb, Uplift (160) 605 lb
• Gauge: 14
• Material: Galvanized Steel
• Finish: G90 Galvanized
• Fastener Size: (8) 0.162 x 3-1/2 in (Header), (4) 0.148 x 3 in (Joist)
• Nominal Product Depth: 0
