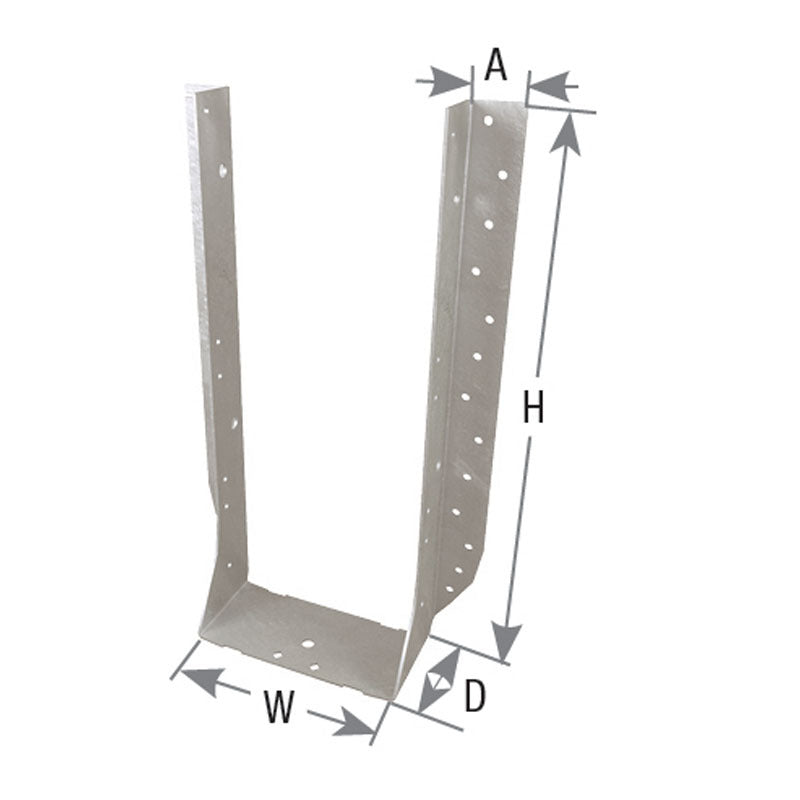

USP UHD414 USP HD Series 2-1/2 x 3-9/16 x 12-13/16 14 ga Heavy Duty Face-Mount Hanger

Product Description

The USP UHD414 is a heavy-duty face-mount hanger designed for use with joists, headers, and trusses. This product has a robust design that allows for maximum load capacity and flexibility. It features round and diamond holes to facilitate efficient installation and ensure strong connections.

• Designed for maximum load bearing with additional diamond holes for nailing.
• Fabricated from G90 galvanized steel for enhanced durability.
• Suitable for both floor and roof applications, providing versatile use.

Product Highlights

This heavy-duty face-mount hanger ensures structural integrity in various applications, making it ideal for construction and renovation projects.

Product Information

Standard Information

• Brand: USP
• Part Number: 337HD414

Technical Specifications

• Material: Galvanized Steel
• Finish: G90 Galvanized
• Gauge: 14
• Fastener Size: (18) 0.162 x 3-1/2 in (Header), (8) 0.148 x 3 in (Joist)
• Load Capacity: Floor (100) 2770 lb, Roof (115) 3125 lb, Roof (125) 3355 lb, Uplift (160) 1550 lb
