USP UHD1714IF USP HD Series 2-1/2 x 1-13/16 x 13-5/16 14 ga Heavy Duty Face-Mount Hanger

Product Description

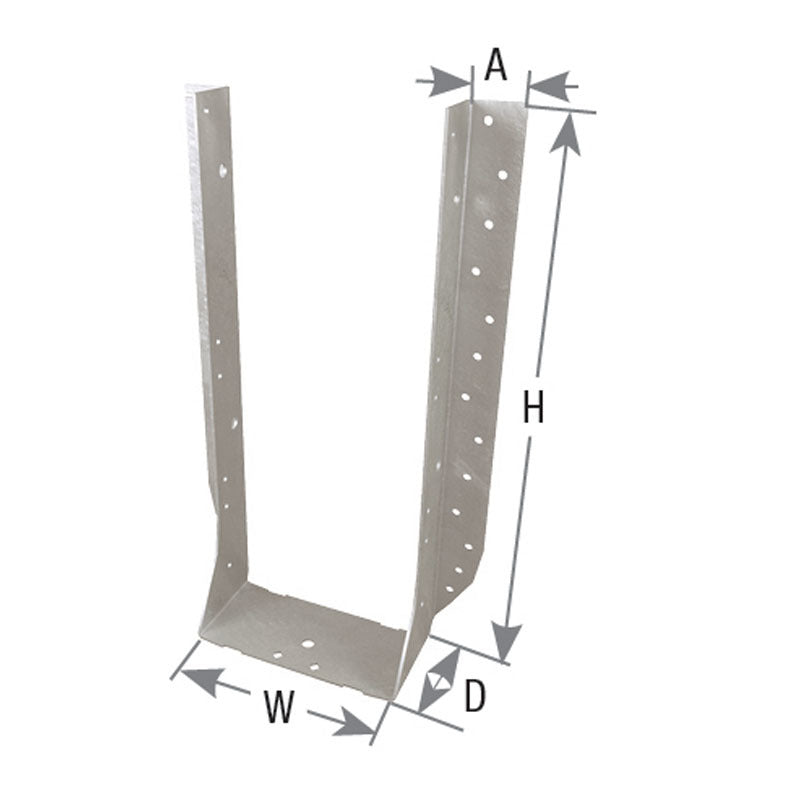

The USP UHD1714IF is a heavy-duty face-mount hanger designed for secure connections of headers, joists, and trusses. This product features both round and diamond holes to provide flexibility in installation and optimal load support. Enhanced with additional diamond holes, it allows for maximum nailing options to increase structural integrity.

• Made from durable steel material
• G90 galvanized finish for corrosion resistance
• Suitable for various applications including residential and commercial framing

Product Highlights

This heavy-duty hanger facilitates robust connections in framing projects, ensuring stability and safety.

Product Information

Standard Information

• Brand: USP
• Part Number: 337HD1714

Technical Specifications

• Load Capacity: DF/SP (100) 3790 lb, DF/SP (115) 3920 lb, DF/SP (125) 4005 lb, DF/SP - Uplift (160) 1550 lb
• Gauge: 14
• Finish: G90 Galvanized
• Material: Steel
• Fastener Size: (28) 0.162 x 3-1/2 inches (Header), (8) 0.148 x 1-1/2 inches (Joist)
• Nominal Product Depth: 0
