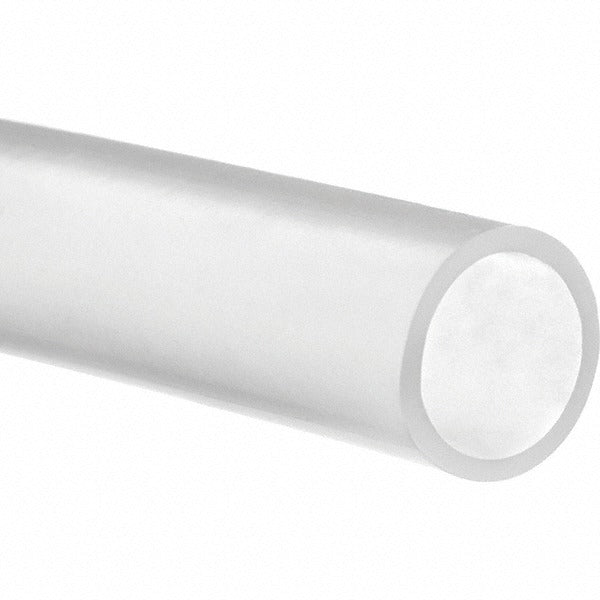

Usa Industrials ZUSA-HT-454 Polyurethane Tube 100 Ft

Product Description

The USA INDUSTRIALS ZUSA-HT-454 is a clear polyurethane tube rated for a wide range of fluid transfer applications where cleanliness and flexibility are required. Constructed from Shore 90A hardness polyurethane, this tube handles a maximum working pressure of 120 psi and operates across a temperature range of -80 to 150 degrees F. With an inside diameter of 0.25 inches, an outside diameter of 0.375 inches, and a wall thickness of 0.0625 inches, it provides consistent flow characteristics. The 100-foot coil length makes it well suited for installations requiring longer continuous runs without field splicing. Licensed plumbers, HVAC technicians, and food-service equipment installers work with this product in both new construction and retrofit scenarios.

This polyurethane tube is approved for use with drinking water as well as food and beverage applications, meeting FDA and NSF standards. Its clear construction allows visual flow confirmation without cutting into the line, a practical advantage in food processing, beverage dispensing, laboratory, and light industrial fluid handling installations. The flexible polyurethane material resists kinking under routing constraints common in tight equipment enclosures and service panels.

Key Features

• Clear polyurethane construction allows visual flow verification without line interruption
• Maximum working pressure of 120 psi supports a broad range of fluid system demands
• Wide service temperature range from -80 to 150 degrees F suits both refrigerated and warm-side applications
• Shore 90A hardness provides resistance to abrasion and kinking during routing
• FDA and NSF approved for drinking water and food and beverage service
• 100-foot coil length reduces field splices and simplifies installation planning

Compatibility

Approved for use with drinking water as well as food and beverage fluid systems. Suitable for standard 0.25-inch ID polyurethane tube fittings and push-to-connect pneumatic and fluid fittings that accept 0.375-inch OD tubing.

Installation Notes

Installation should be performed by a licensed plumber or qualified technician in accordance with applicable local codes and the IPC where potable water connections are involved. Shut off fluid supply and relieve system pressure before cutting or connecting the tube. Use a clean, square cut to ensure full seating in push-to-connect or compression fittings. Avoid routing the tube across sharp edges or heat sources that could exceed the 150 degrees F service limit.
