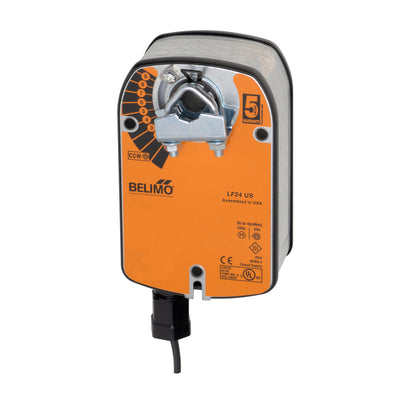

Belimo LF24 Damper Actuator 35 in-lb Spring Return 24V On/Off

Product Description

The Belimo LF24 is a damper actuator with a torque of thirty-five inch-pounds. It operates on twenty-four volts with an on/off control scheme, ideal for HVAC systems. This actuator ensures reliable fail-safe operation for dampers. The actuator easily mounts on shafts from three-eighths to one-half inch in diameter. The universal clamp allows for a straightforward attachment process. For larger shafts, the accessory K6-1 may be needed.

• Durable design; suited for HVAC applications.
• True spring return feature for fail-safe operation.
• Graduated position indicator for easy visibility.

Product Highlights

This actuator maintains consistent torque to dampers whether powered or not. The innovative design allows for 95 degrees of rotation and can be stalled at any position without mechanical end switches, ensuring flexibility in operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: LF24

Technical Specifications

• Actuator Type: Spring return
• Angle of Rotation: 95 degrees
• Control Type: On/Off
• Voltage AC/DC: 24 V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
• Degree of Protection: IP54
