Product Description

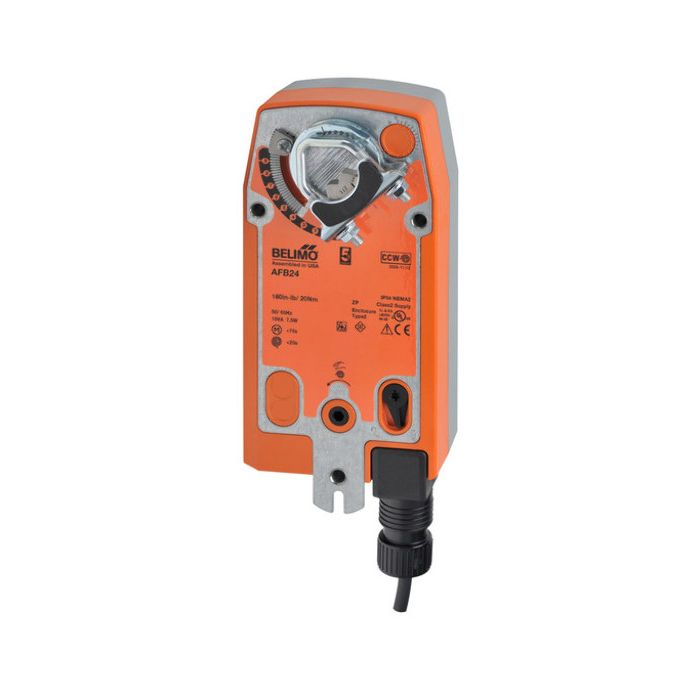

The Belimo AFB24 is a spring return damper actuator designed for on/off control in HVAC systems. This actuator operates at 24V AC/DC and provides reliable fail-safe operation with spring return functionality.
- True spring return operation
- Torque of 180 in-lb
- Compatible with HVAC dampers
Product Highlights
Featuring a universal clamp for damper shafts up to 1.05 inches in diameter and a graduated position indicator, the AFB24 ensures precise control and easy installation. It is overload-proof and can maintain operation even with temporary restrictions.
Product Information
Standard Information
-
Brand: Belimo
-
Model: AFB24
-
Power: 24V AC/DC
Technical Specifications
-
Actuator Type: Spring Return
-
Torque: 180 in-lb
-
Voltage: 24V AC/DC
-
Power Consumption (Running): 5W
-
Power Consumption (Holding): 2.5W
-
Running Time (Motor): 75 seconds
-
Running Time (Fail-safe): <20 seconds
-
Angle of Rotation: 95 degrees
-
Control Type: On/Off
-
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
-
Manual Override: 5 mm hex crank (3/16 Allen) supplied
-
Electrical Connection: Cable
-
Safety Function: Yes
-
Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
-
Dimensions (HxWxD): 9-11/16 x 3-5/32 x 3-27/64 inches
-
Ambient Temperature Range: -22°F to 122°F
-
Weight: 2.21 lbs
