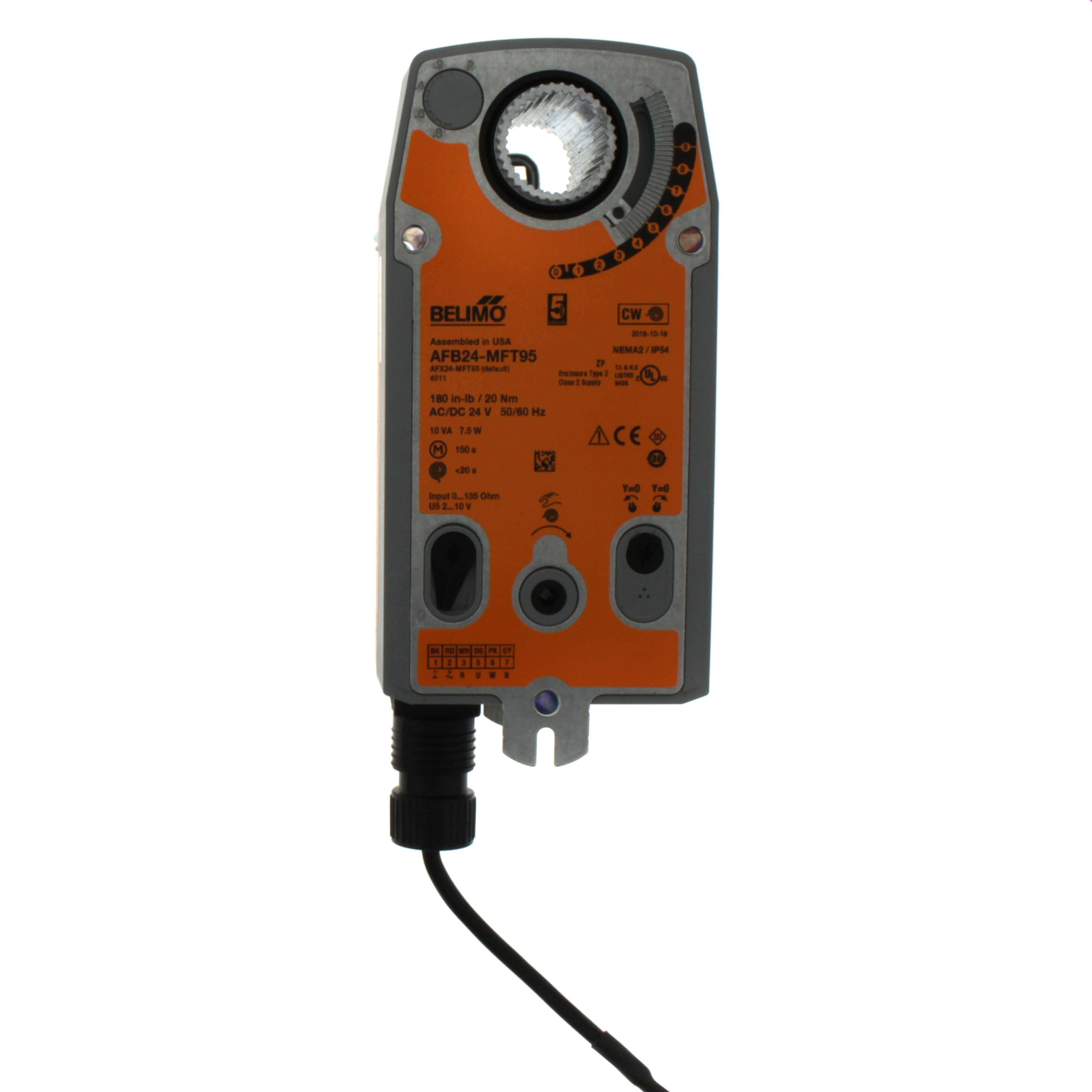

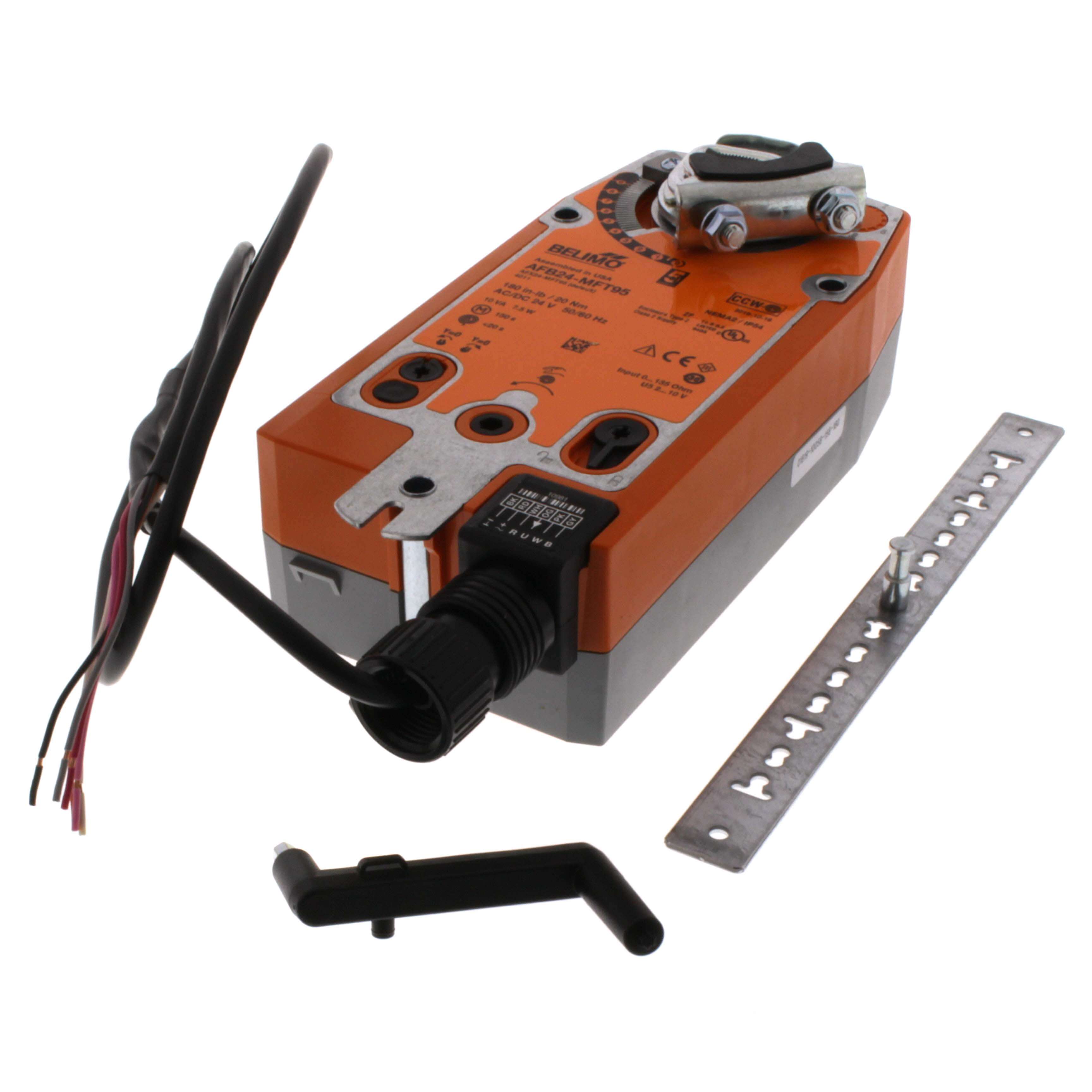

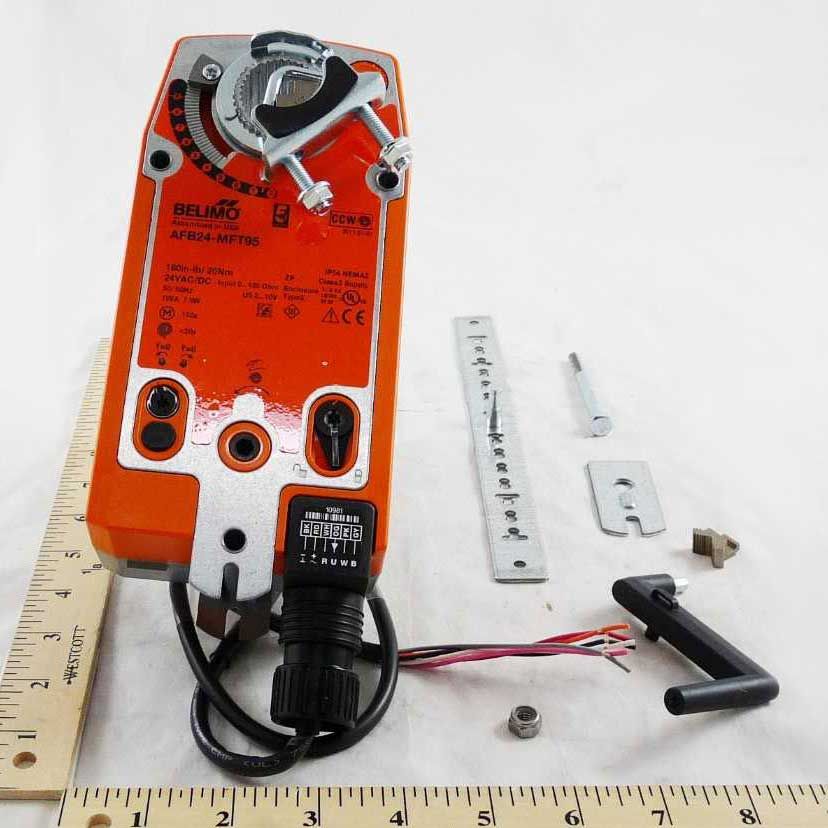

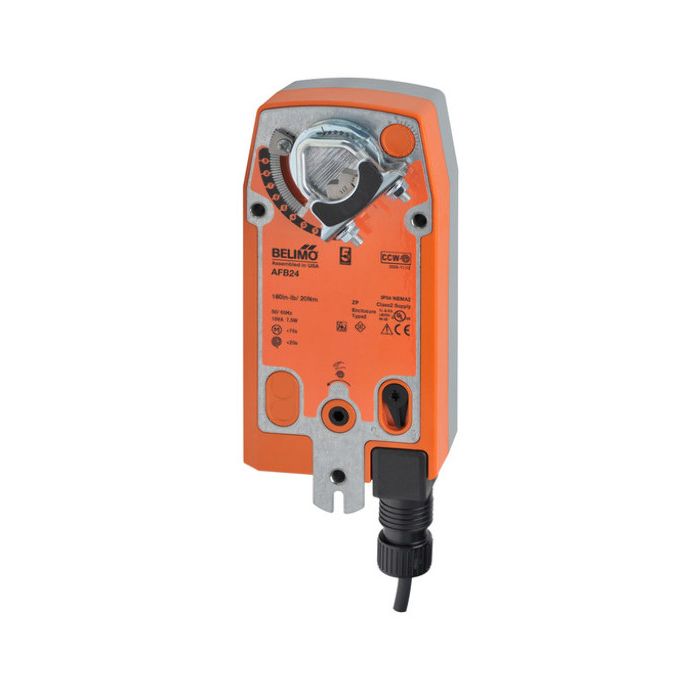

Belimo AFB24-MFT95 Direct Coupled Actuator, 180 in-lb

Product Description

The Belimo AFB24-MFT95 is a direct coupled actuator designed to provide reliable operation in HVAC applications. This actuator features a torque of 180 in-lb and operates on 24 VAC power. It is suitable for use with a control signal of zero to 135 ohm. The actuator is essential for regulating airflow and maintaining comfort in building systems.

• Mechanical spring return feature for fail-safe operation
• Graduated position indicator for easy monitoring
• 95-degree rotational range

Product Highlights

Used for modulating dampers in HVAC systems. Provides constant torque and may be stalled at any position during normal operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: AFB24-MFT95

Technical Specifications

• Power Consumption: 7.5 W Running, 3 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Cable
• Housing: NEMA 2, IP54 UL Enclosure Type 2
• Weight: 5.23 lbs
• Dimensions: 6.4 x 12.15 x 4.25 inches
