Product Description

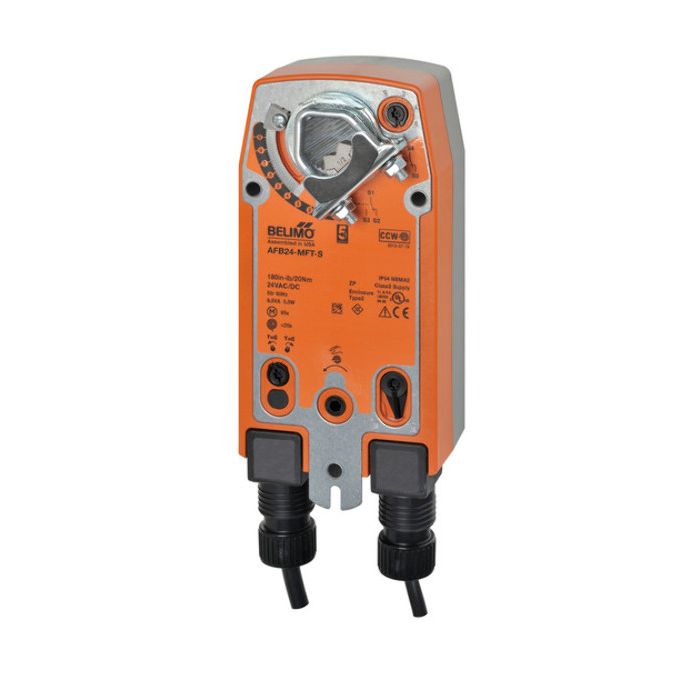

The Belimo AFB24MFTS damper actuator is a reliable and efficient device designed for HVAC systems. It offers a torque of 180 in-lb and operates on 24V, providing precise modulation for dampers and control valves.
- Spring return feature ensures fail-safe operation
- Operates with 24V AC/DC
- Maximum rotation angle of 95 degrees
Product Highlights
This actuator is perfect for HVAC systems that need reliable modulation and fail-safe operations. It comes with a brushless DC motor controlled by a microprocessor for greater reliability.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: AFB24MFTS
Technical Specifications
-
Actuator Type: Spring return
-
Angle of Rotation: 95 degrees
-
Auxiliary Switches: 2 x SPDT
-
Control Type: MFT/Programmable
-
Degree of Protection: IP54 NEMA2 UL Enclosure Type2
-
Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
-
Electrical Connection: Cable
-
Manual Override: 5 mm hex crank (3/16 Allen) supplied
-
Power Consumption (Holding): 3 W
-
Power Consumption (Running): 7.5 W
-
Running Time (Fail-safe): Less than 20 seconds
-
Running Time (Motor): 150 seconds / 90 degrees
-
Running Time range (Motor): 70 to 220 seconds
-
Safety Function: YES
-
Torque: 180 in-lb [20 Nm]
-
Voltage AC/DC: AC/DC 24 V
