Product Description

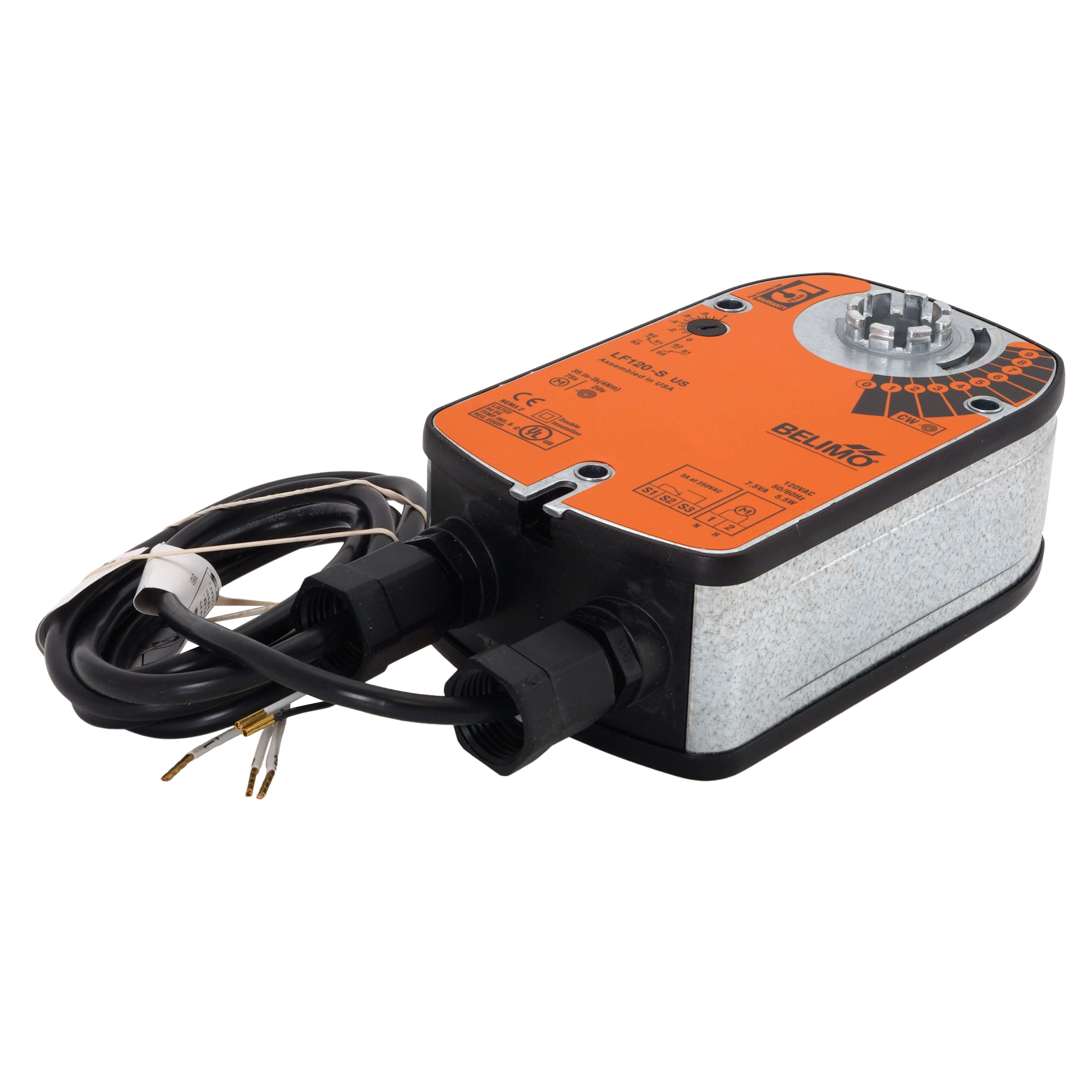

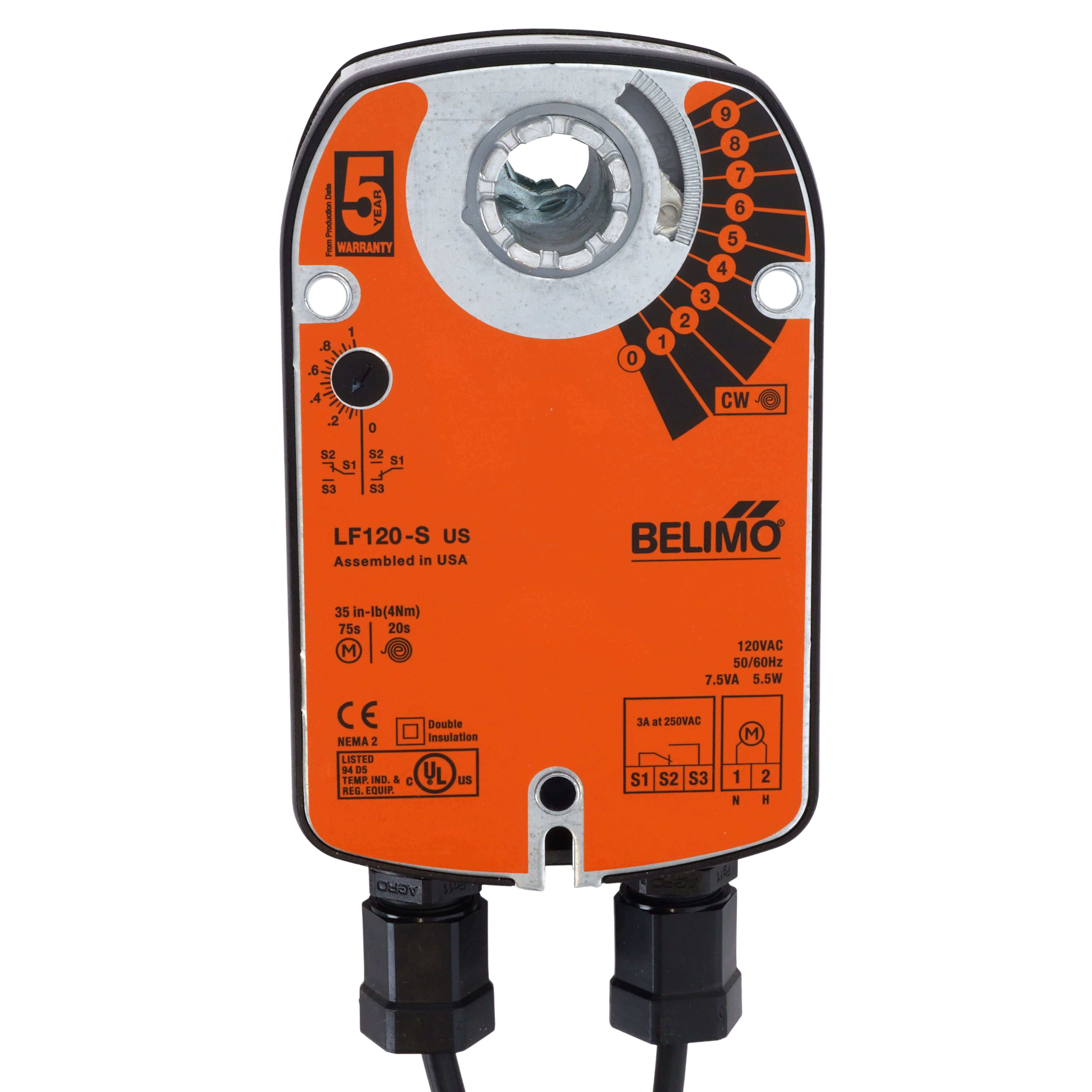

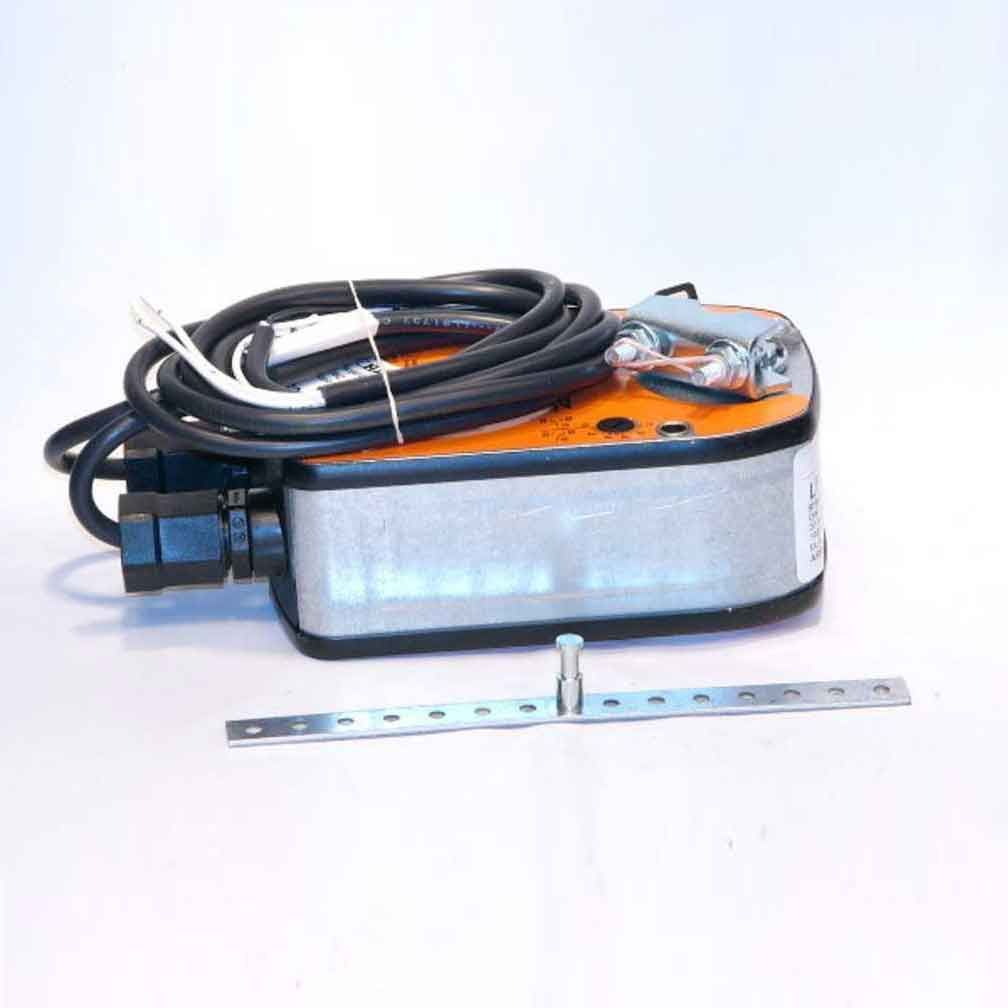

The Belimo LF120-S damper actuator is ideal for on/off, fail-safe damper control in HVAC systems. This actuator ensures reliable fail-safe applications with true spring return operation. It is designed for direct mount installation and does not require an electrical ground connection.
- Ideal for on/off, fail-safe damper control in HVAC systems
- Provides consistent torque to the damper
Product Highlights
Belimo's LF120-S actuator offers reliable functionality for HVAC dampers. It is a spring return actuator that can be mounted directly to shafts measuring between 3/8 and 1/2 inch. The actuator operates with 120V power and includes an SPDT switch for additional safety and signaling.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: LF120-S
Technical Specifications
-
Voltage: 120VAC
-
Torque: 35 in-lb
-
Rotation Angle: 95 degrees
-
Switch Type: SPDT
-
Mounting Type: Direct Mount
-
Height: 7.67 inches
-
Width: 3.84 inches
-
Depth: 3.23 inches
-
Weight: 4.20 lbs
-
Power Rating: 5.5W
-
Running Time (Motor): 75 seconds
-
Running Time (Fail-Safe): Less than 25 seconds
-
Ambient Temp. Range: -22 to 122 degrees Fahrenheit
-
Spring Return: Yes
-
Shaft Type: 3/8 to 1/2 round or 3/8 to 7/16 square
