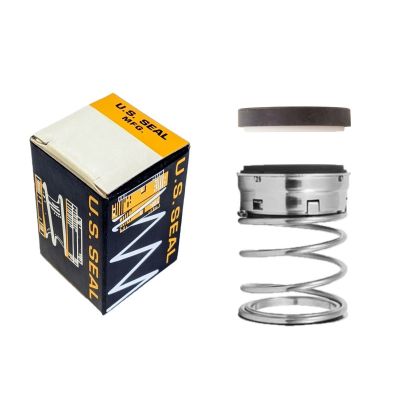

Us Seal PS-745 Pump Seal 1-5/8 inches

Product Description

The US SEAL PS-745 is a mechanical seal designed for reliable sealing in pump applications. It features a 1-5/8" shaft, Type 1/Type E rotary, ceramic cup seat, and Buna rubber construction. The self-adjusting elastomer bellows compensate for abnormal shaft end play and primary face sealing wear.

• Mechanical Seal with 1-5/8" Shaft
• Features Type 1/Type E Rotary and Ceramic Cup Seat
• Suitable for pumps, mixers, blenders, and compressors

Product Highlights

The PS-745 pump seal ensures optimal performance and longevity of your pump with reliable sealing.

Product Information

Standard Information

• Brand: US SEAL
• Manufacturer Part Number: PS-745
• Country of Origin: US

Technical Specifications

• Manufacturer: US Seal
• Part Number: PS-745
• Shaft Size: 1.625" (1-5/8")
• Rotary Head Type: US Seal Type E (John Crane Type 1)
• Rotary Head Material: SS/Carbon/Buna
• Rotary Head Dimensions: 2.250" OD, 2.000" Operating Height
• Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
• Stationary Seat Material: Ceramic/Buna
• Stationary Seat Dimensions: 2.375" Bore, 0.500" Thick
• Maximum Temperature: 225F (107C)
• Maximum Pressure: to 350 psi (24.1 Bar)
• Seal Faces: Carbon vs. Ceramic
• Elastomers: Buna
