Us Seal PS-290V Pump Seal

Product Description

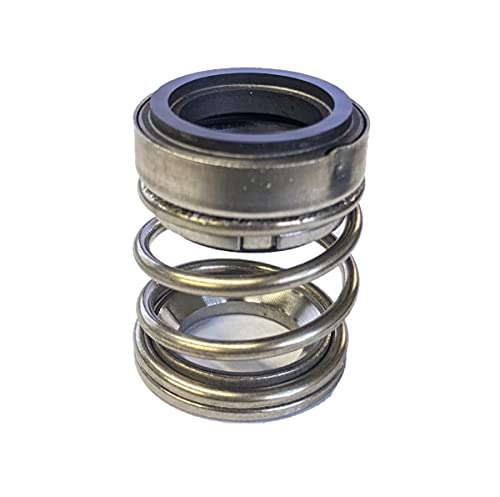

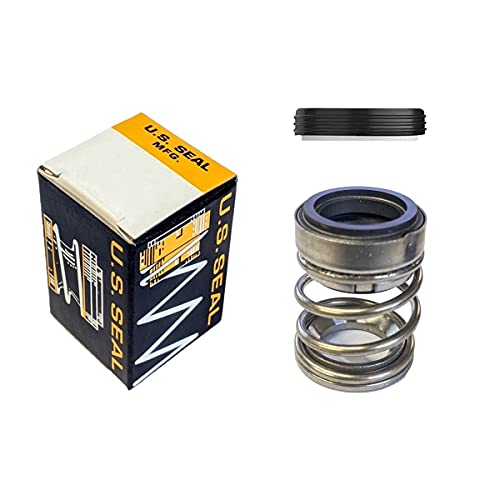

The US SEAL PS-290V pump seal is suitable for use in various applications. It features an elastomer bellows seal with a non-clogging, single coil spring. Designed with a drive band notch to eliminate overstressing of the bellows. Ideal for rotary and turbine pumps, compressors, mixers, blenders, and chillers.

• Elastomer bellows seal, non-clogging, single coil spring.
• The drive band’s notch design eliminates overstressing of the bellows
• Usage: Rotary and turbine pumps, compressors, mixers, blenders and chillers

Product Highlights

Suitable for rotary and turbine pumps, compressors, mixers, blenders, and chillers. Elastomer bellows seal with a non-clogging, single coil spring.

Product Information

Standard Information

• Brand: US SEAL
• Manufacturer Part Number: PS-290V

Technical Specifications

• Type: General Service Seal
• Series: Head Type C
• Inside Diameter: 0.625 in
• Outside Diameter: 1.062 in
• Width: 0.875 in
• Speed: 1750 RPM
• Pressure Rating: 150 psi
• Material: BCFJF
• Temperature Range: -40°F to +400°F
