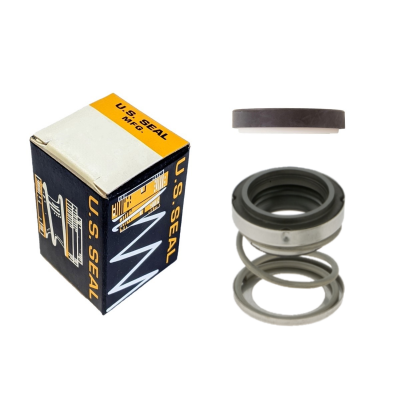

Us Seal PS-235V-CMS Ps-235v-cms Pump Seal 1 inches Shaft Size

Product Description

The US SEAL PS-235V-CMS Ps-235v-cms Pump Seal is an elastomer bellows seal featuring a non-clogging, single coil tapered spring. Its drive band's notch design eliminates overstressing of the bellows. Commonly used in rotary and turbine pumps, compressors, mixers, blenders, and chillers, this seal is designed for 1" shafts.

• Elastomer bellows seal
• Non-clogging
• Single coil tapered spring

Product Highlights

Ideal for use in various applications, including rotary and turbine pumps, compressors, mixers, blenders, and chillers.

Product Information

Standard Information

• Brand: US SEAL
• Manufacturer Part Number: PS-235V-CMS

Technical Specifications

• Manufacturer: U.S. Seal Mfg
• Part Number: PS-235V-CMS
• Shaft Size: 1.000" (1")
• Rotary Head Type: US Seal Type C (John Crane Type 21)
• Rotary Head Material: SS/Carbon/Viton
• Rotary Head Dimensions: 1.687" OD, 1.000" Operating Height
• Stationary Seat Type: Cup Mounted Seat (US Seal Type 1)
• Stationary Seat Material: Ceramic/Viton
• Stationary Seat Dimensions: 1.626" Bore, 0.437" Thick
• Maximum Temperature: 400F (204C)
• Maximum Pressure: to 150 psi (10.3 Bar)
• Seal Faces: Carbon vs. Ceramic
• Elastomers: Viton
