Us Seal 330.009.005 PS-100 Type A Pump Seal Assembly (5/8 inches) 1760371

Product Description

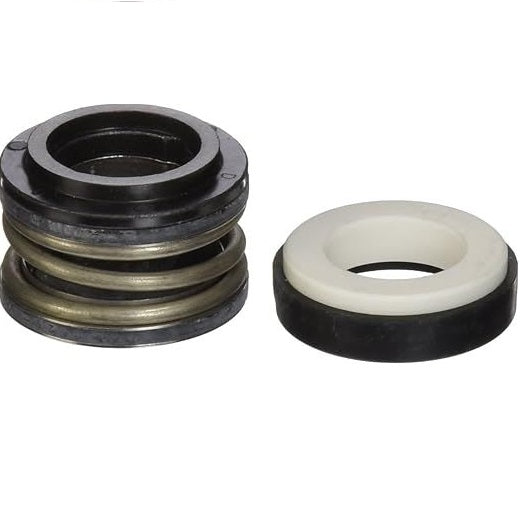

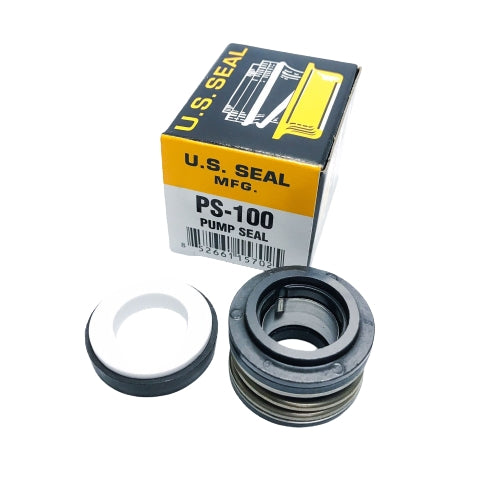

US Seal 330.009.005 is a PS-100 Type A 5/8" pump seal assembly with a cup-mounted ceramic mating ring and a mating ring bore of 1.187 in. It uses Buna secondary seals, a molded plastic primary ring, and stainless steel parts and spring to provide automatic self-adjustment and precision-lapped sealing surfaces. The seal is rated to 75 PSI and for temperatures from 40°F to 400°F for higher-speed, higher-pressure pump applications.

• Construction: Buna elastomer secondary seals, molded plastic primary ring, ceramic mating ring, stainless steel parts and spring
• Mounting and size: Type A (equivalent to John Crane Type 6), cup-mounted mating ring, mating ring bore 1.187 in, seal size 5/8"
• Performance: Rated up to 75 PSI; temperature range 40°F to 400°F; designed for automatic self-adjustment and precision-lapped sealing surfaces

Product Highlights

Cup-mounted ceramic mating ring; Buna secondary seals and molded plastic primary ring; Rated to 75 PSI and 40°F–400°F

Product Information

Standard Information

• Brand: US SEAL
• Manufacturer Part Number: 330.009.005

Technical Specifications

• Brand: US Seal
• Manufacturer Part Number: 330.009.005
• Model: PS-100
• Seal Size: 5/8"
• Seal Type: Type A (equivalent to John Crane Type 6)
• Mating Ring Mounting: Cup mounted
• Mating Ring Bore: 1.187 in
• Material Code: BMFJF
• Secondary Seals: Buna elastomer
• Primary Ring Material: Molded plastic
• Mating Ring Material: Ceramic
• Stainless Steel Components: Yes (parts and spring)
• Spring Material: Stainless steel
• Pressure Rating: Up to 75 PSI
• Temperature Range: 40°F to 400°F
• Manufacturer Cross Reference: Weil Pump CO. 330.009.005; Xylem Inc. 1760371
