US-Nidec WDP12S2ACR Paint Free Washdown Duty Motor

Product Description

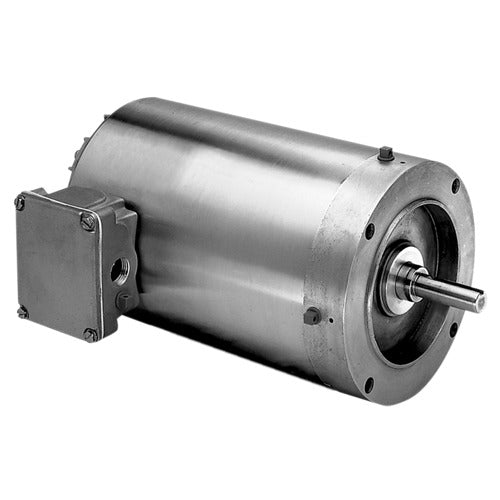

The US-Nidec WDP12S2ACR is a reliable paint free washdown duty motor designed for various industrial applications. This three-phase motor provides a power capacity of one-half horsepower and operates efficiently at voltages of 208-230 or 460. The motor's construction uses rolled steel and features a totally enclosed non-ventilated (TENV) design, ensuring durability and weather resistance.

• Electrical Type: Three Phase
• Frame Size: 56
• Rotation: Reverse

Product Highlights

This motor is suitable for washdown applications. It features ball bearings for smooth operation and a C-face mounting type for easy installation. The motor has an efficiency rating of seventy-eight point five percent and operates without an overload protector.

Product Information

Standard Information

• Motor Type: Washdown Duty Motor
• Enclosure: TENV

Technical Specifications

• Horsepower: 0.5
• Diameter: 6.5 inches
• Amperage: 2.0-1.9/0.9
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footless
