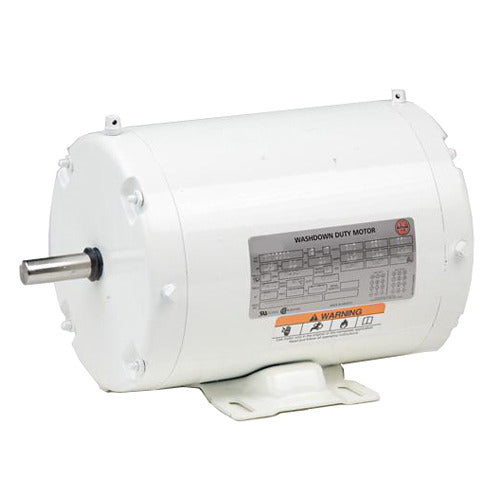

US-Nidec WD34S2A White Epoxy Washdown Motor 3/4 HP

Product Description

The US-Nidec WD34S2A is a three-phase white epoxy washdown motor with a power rating of three-fourths horsepower. This motor features a robust design suitable for wet environments. It operates at a voltage of 208-230/460 and is built with rolled steel for durability.

• Electrical Type: Three Phase
• Enclosure Type: Totally Enclosed Non-Ventilated (TENV)
• Mounting: Rigid Base

Product Highlights

This motor is well-suited for applications that require resilience in harsh conditions. The nema frame size is fifty-six, and it has an efficient design with an operational efficiency of eighty-two point five percent.

Product Information

Standard Information

• Material: Rolled Steel
• Rotation: Reverse

Technical Specifications

• Frame Size: 56
• Diameter: 6.5 inches
• Amperage: 2.6-2.4/1.2
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Insulation Class: F
• Service Factor: 1.15
• Overload Protector: None
