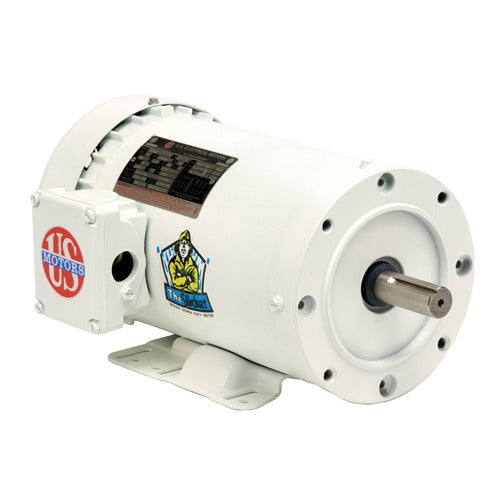

US-Nidec WD1S2A14C White Epoxy Washdown Motor 1 HP 143TC

Product Description

The US-Nidec WD1S2A14C is a white epoxy washdown motor designed for various applications, particularly in wet or humid environments. This three-phase motor operates efficiently at one horsepower with a frame size of 143TC. It utilizes a rolled steel construction and has a TENV (Totally Enclosed Non-Ventilated) enclosure, which offers protection against moisture and contaminants.

• Electrical Type: Three Phase
• Voltage Range: 208-230/460
• Mounting Type: C-Face / Footed

Product Highlights

This motor is ideal for applications requiring reliable performance in challenging conditions. It features a single shaft type and has a high-efficiency rating of seventy-seven point four percent, ensuring energy savings.

Product Information

Standard Information

• HP: 1
• Frame: 143TC
• Enclosure: TENV
• Overload Protector: None
• Amperage: 3.4-3.3/1.7

Technical Specifications

• Voltage: 208-230/460
• Rotation: REV
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6205
• Service Factor: 1.15
