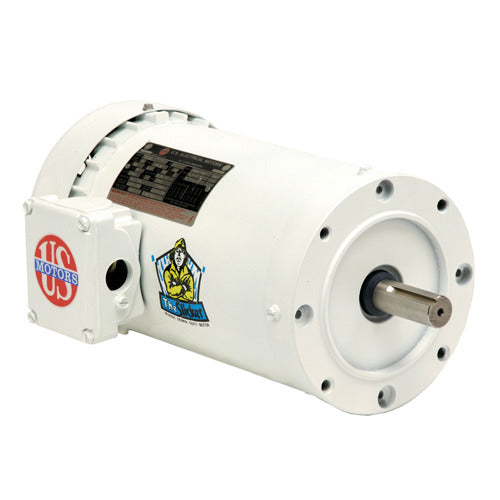

US-Nidec WD12S2ACR White Epoxy Washdown Motor 1/2 HP 208-230/460

Product Description

The US-Nidec WD12S2ACR is a durable white epoxy washdown motor with a power rating of half a horsepower. It operates on three phases at voltages of 208-230/460. The motor features a TENV enclosure which protects it from dust and moisture, making it suitable for washdown environments. Key specifications include a frame size of fifty-six, a diameter of six and a half inches, and dual ball bearings sized 6203.

• Electrical Type: Three Phase
• Amperage: 1.9-1.8/0.9
• Mounting Type: C-Face / Footless

Product Highlights

This motor is ideal for applications that require reliability in wet or potentially corrosive environments.

Product Information

Standard Information

• Electrical Type: Three Phase
• Horsepower: 1/2 HP

Technical Specifications

• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure Type: TENV
• Voltage: 208-230/460
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
